5 Piece Confined Space Davit System with 12"-29" Offset Davit Arm

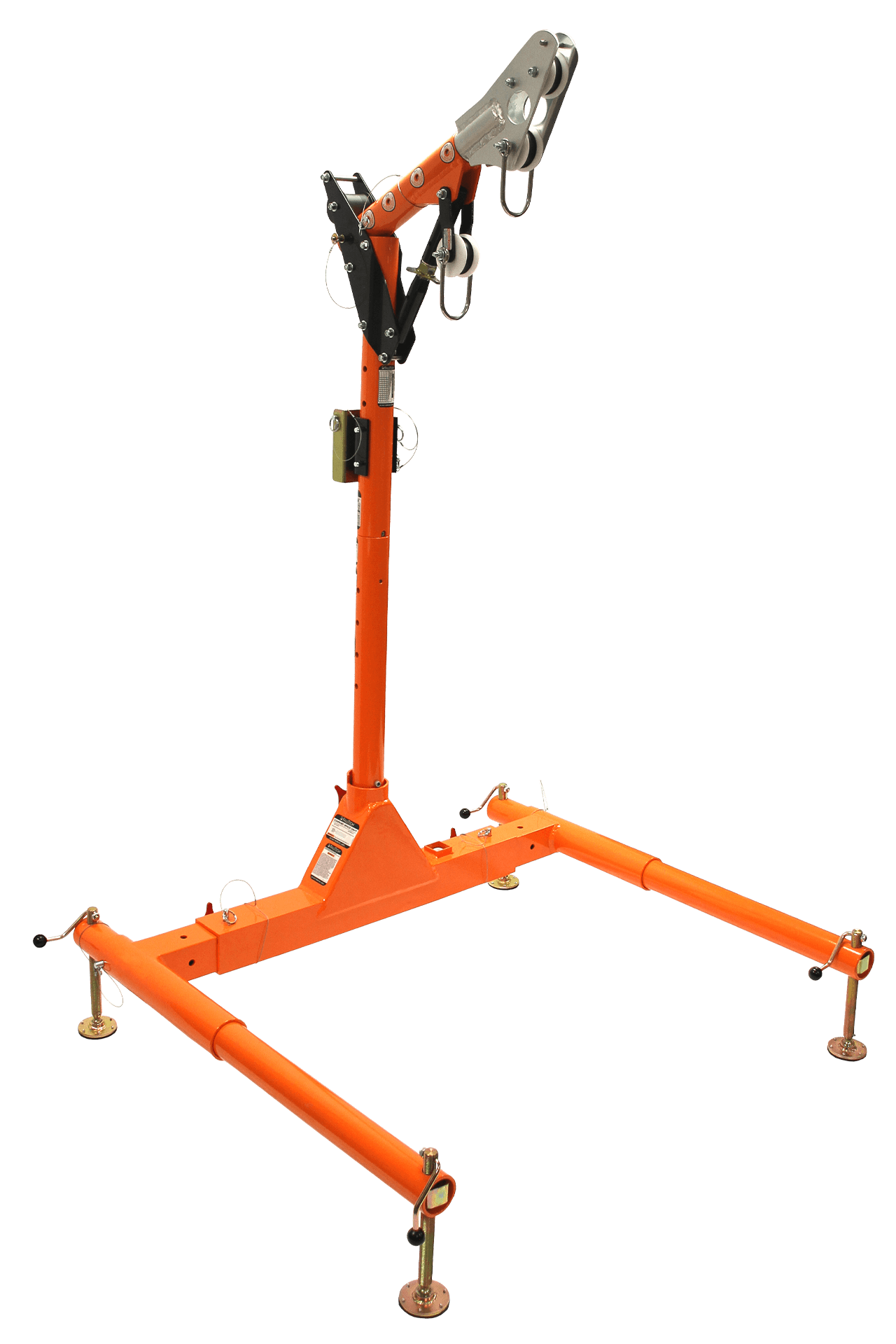

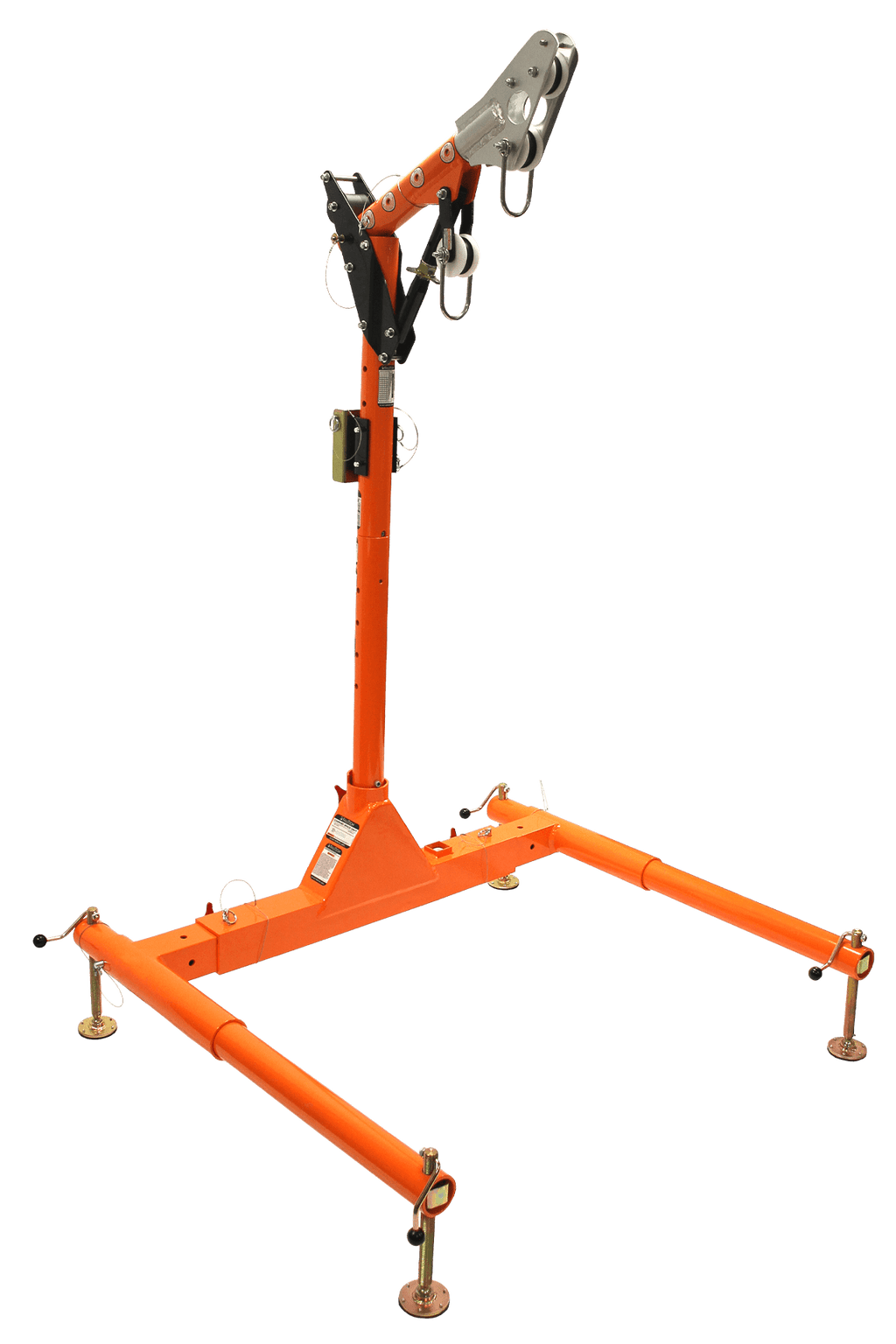

The FallTech 5-Piece Confined Space Davit System (model 6050128) gives entry and rescue teams a portable lifting point over manholes, vaults and tanks. The offset arm reaches from 12 in. to 29 in. so the lifeline can be centred over the opening, and the three-piece base spreads from 38 in. to 65 in. to straddle a range of access points.

The 6050128 is supplied without a lifting device. Variant 6050328R pairs the same davit with a FallTech 3-way SRL-R.

Features

• Offset davit arm adjusts from 12 in. to 29 in. of reach
• Three-piece base spreads from 38 in. to 65 in., with a built-in bullseye level and tool-free height setting
• A 33 in. lower mast extension plus a receiver bracket for lifting devices come with the system
• Two pulleys on the arm, plus a second anchor point rated to 5,000 lb
• Powder-coated 6061 aluminum and plated steel keep the components light and hard-wearing
• Receiver bracket accepts a FallTech personnel winch or 3-way SRL-R (sold separately)

Included

• Offset davit arm, 12 in. to 29 in.
• Three-piece adjustable base
• 33 in. lower mast extension
• Device receiver bracket
• 3-way SRL-R (variant 6050328R only)

Accessories & Related Systems

• 7297 – Personnel Winch, galvanized steel cable
• 7297S – Personnel Winch, stainless steel cable
• 6501528 – 3-Piece Vehicle Hitch-Mount Base for 12 in. to 29 in. systems
• 6500657 – 57 in. Lower Mast Extension
• 6050228W – Same davit system supplied with a personnel winch
