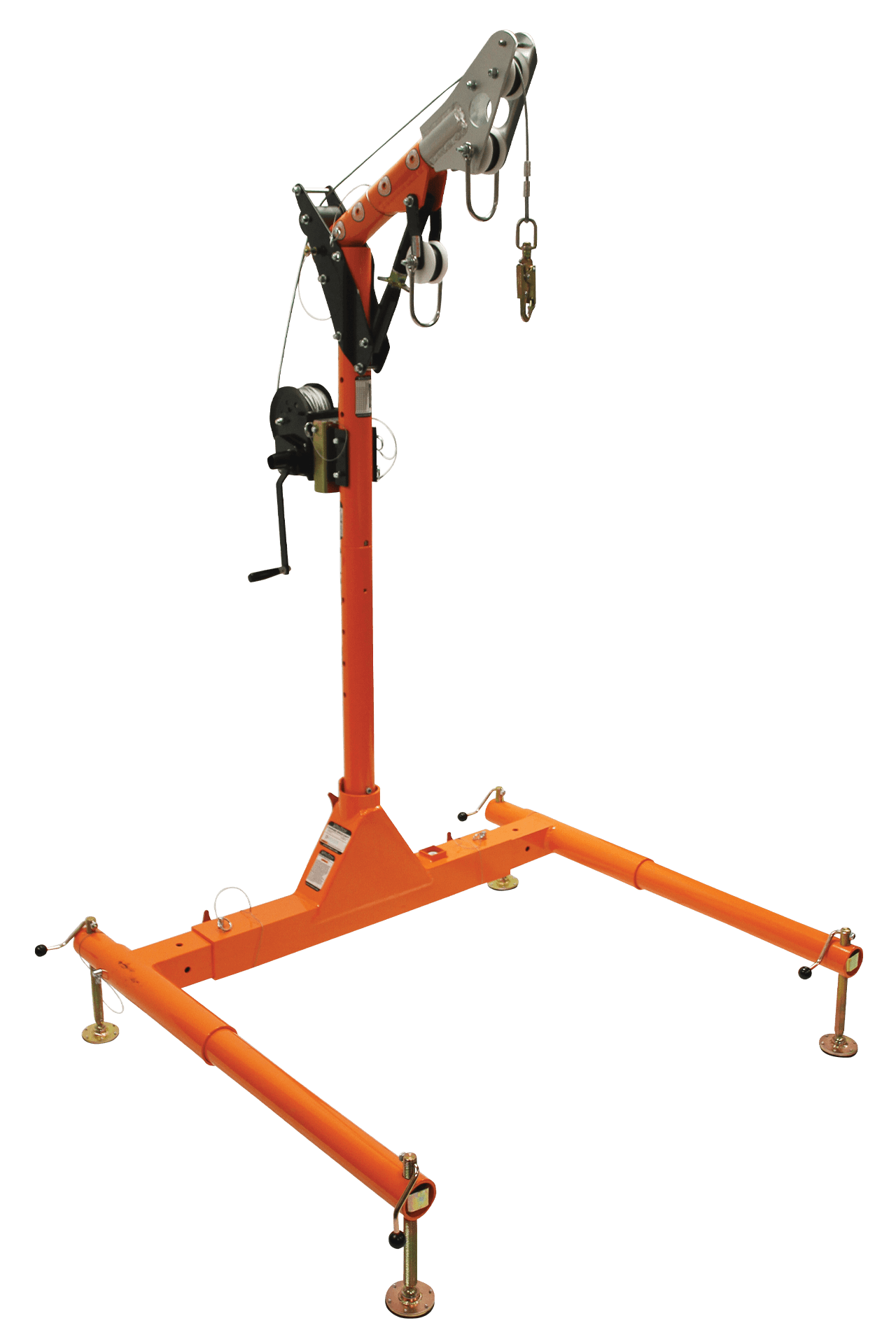

5 Piece Confined Space Davit System with 12"-29" Offset Davit Arm and Winch

Description

5pc Confined Space Davit System with 12"-29" Offset Davit Arm and Winch

Features

• Davit arm adjusts from 12"-29" offset reach to keep lifelines centred over access locations
• Base width adjusts from 38"-65" and fits a wide range of openings.
• 5 Piece system features a 33" lower mast extension and device receiver bracket
• Includes 60' galvanized cable Personnel Winch
• Offset davit arm features two pulleys and a secondary 5,000 lb anchor point
• 3 Piece base includes an integral bullseye level and tool-free height adjustment
• Lightweight powder-coated aluminum combined with alloy steel for longer life and durability
• Davit System meets OSHA 1926.502 and 1910.66 regulations
• Personnel Winch complies with ANSI Z359.4-2013

Product Specifications

• Includes arm, 3 piece base and mast
• Powder coated 6061 aluminum and plated steel
• Davit System
• Rescue Static Strength; 5,000 lb min.
• Entry/Egress Static Strength; 1,800 lb min.
• Rescue User Capacity; 2 users, 310 lb max. for each person
• Entry/Egress Capacity; 1 user, 310 lb max.
