Draeger X-dock 5300 (PAC)

Draeger X-dock 5300 (PAC)

Regular price $6,176.66 CAD
Regular price Sale price $6,176.66 CAD
Sale Sold out
Item Ships From Manufacturer
Estimated Ship Time 10-15 Business Days
Shipping calculated at checkout.

Manufacturer: Draeger Safety Canada Ltd.

Item # 8321881Mfr. Model # 8321881

Order from manufacturer

Quantity
View full details

Product Details

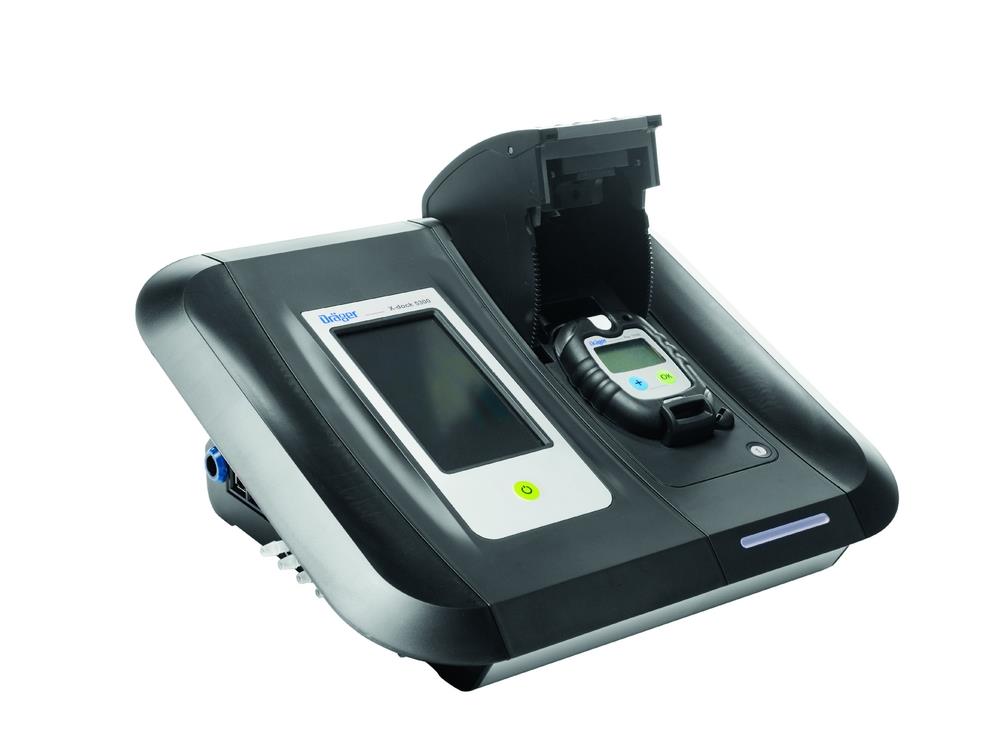

The Dräger X-dock 5300 (PAC), model 8321881, combines the X-dock touchscreen master controller with one Pac module, giving single-gas detector users an automated way to bump test and calibrate one Dräger Pac instrument at a time. Results are logged automatically, so test records are ready for audits.

Features

  • Touchscreen controller stores up to three test routines you can set up to suit your fleet
  • Recognises the sensor combination of each docked detector automatically and runs a bump test in roughly 8 to 15 seconds
  • Keeps every test result in a built-in database and produces reports and calibration certificates; several stations can be networked over Ethernet
  • Low test gas consumption of 300 mL/min per module, with one pump feeding the valve system
  • Can also check alarms and sensor permeability, charge instruments (optional) and run from 12 V in a vehicle

Related X-dock Versions

  • 8321880 – Dräger X-dock 5300 with X-am 125 module
  • 8321900 – Dräger X-dock 6300 master controller
  • 8321901 – Dräger X-dock 6600 master controller

Specifications

Item Bump Test and Calibration Station
Brand Dräger
Mfr. Model # 8321881
Configuration Master controller with 1 Pac module
Test Gas Inlets 3, plus 1 fresh air inlet and 1 exhaust outlet
Module Dimensions Approx. 90 mm x 145 mm x 250 mm
Master Controller Dimensions Approx. 119 mm x 130 mm x 250 mm
Display Touchscreen on master controller
Bump Test Duration Approx. 8 to 15 s
Test Gas Flow 300 mL/min per module
Power Supply 24 V power pack; 12 V vehicle adapter option
Interfaces Ethernet; 3 x USB 2.0 device, 1 x USB host
Internal Memory 2 GB
Ingress Protection IP20
Operating Temperature 0 to 40 °C (32 to 104 °F)
Approvals CE
