Draeger X-dock 5300 (X-am 125)

Draeger X-dock 5300 (X-am 125)

Regular price $6,232.99 CAD
Regular price Sale price $6,232.99 CAD
Sale Sold out
Item Ships From Manufacturer
Estimated Ship Time 10-15 Business Days
Shipping calculated at checkout.

Manufacturer: Draeger Safety Canada Ltd.

Item # 8321880Mfr. Model # 8321880

Order from manufacturer

Quantity
View full details

Product Details

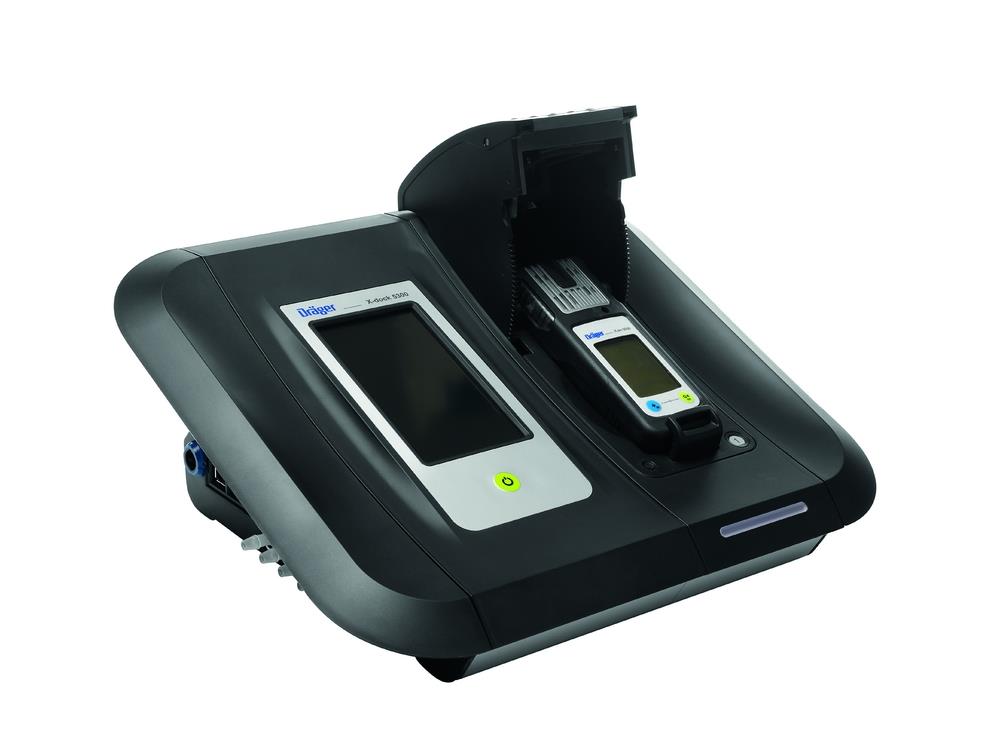

The Dräger X-dock 5300 (X-am 125), model 8321880, is a single-bay automated test station that pairs the touchscreen master controller with one X-am 125 module. It suits smaller teams who want bump tests and calibrations of their Dräger X-am multi-gas detectors done and documented the same way every time, without a technician running gas by hand.

Features

  • Touchscreen controller stores up to three test routines you can set up to suit your fleet
  • Recognises the sensor combination of each docked detector automatically and runs a bump test in roughly 8 to 15 seconds
  • Keeps every test result in a built-in database and produces reports and calibration certificates; several stations can be networked over Ethernet
  • Low test gas consumption of 300 mL/min per module, with one pump feeding the valve system
  • Can also check alarms and sensor permeability, charge instruments (optional) and run from 12 V in a vehicle

Related X-dock Versions

  • 8321881 – Dräger X-dock 5300 with Pac module
  • 8321900 – Dräger X-dock 6300 master controller
  • 8321901 – Dräger X-dock 6600 master controller

Specifications

Item Calibration and Bump Test Station
Brand Dräger
Mfr. Model # 8321880
Configuration Master controller with 1 X-am 125 module
Test Gas Inlets 3, plus 1 fresh air inlet and 1 exhaust outlet
Module Dimensions Approx. 90 mm x 145 mm x 250 mm
Master Controller Dimensions Approx. 119 mm x 130 mm x 250 mm
Display Touchscreen on master controller
Bump Test Duration Approx. 8 to 15 s
Test Gas Flow 300 mL/min per module
Power Supply 24 V power pack; 12 V vehicle adapter option
Interfaces Ethernet; 3 x USB 2.0 device, 1 x USB host
Internal Memory 2 GB
Ingress Protection IP20
Operating Temperature 0 to 40 °C (32 to 104 °F)
Approvals CE
