Water Filled Barricade System

Water Filled Barricade System

$789.00 CAD
$789.00 CAD
Sale Sold out
Estimated Ship Time 10-15 Business Days
Shipping calculated at checkout.

Manufacturer: Plasticade Canada

HYD-O-EGLR-KIT

Order from manufacturer

Durable, impact resistant, channelizing system that conforms to any roadway design. Takes optional fencing making it a versatile longitudinal channelizing device.

Description

  • 152.4cm L x 91.44cm H (60″L x 36″H)
  • Fillable with water or sand, every unit leak tested
  • Durable construction and is impact resistant
  • Conforms to any roadway design and can turn 90 degrees

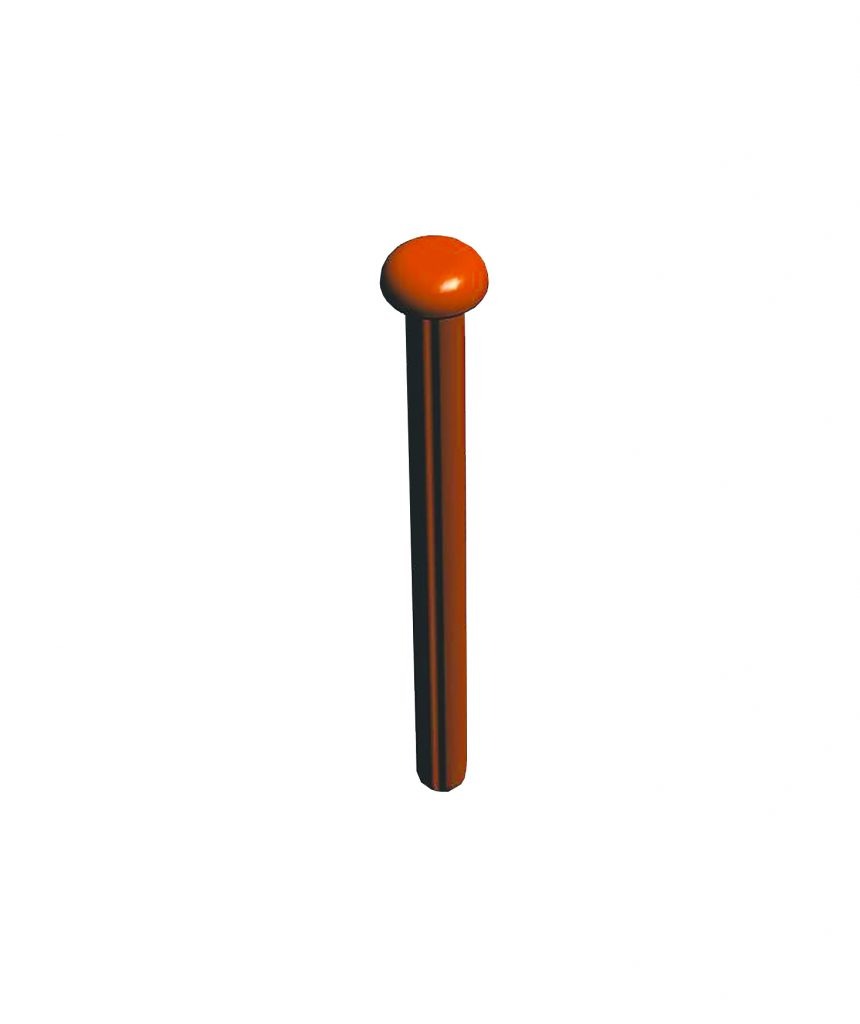

    • Linked units secured with connector pin
    • Quick assembly and breakdown
  • Lightweight, 22.68kg (50 lbs) when empty
  • No heavy machinery needed for installation
  • Stacks for transport and storage
  • Recessed areas at bottom provide forklift access
  • Can be moved by forklift when filled with water or sand
  • Standard barricade light receptacle

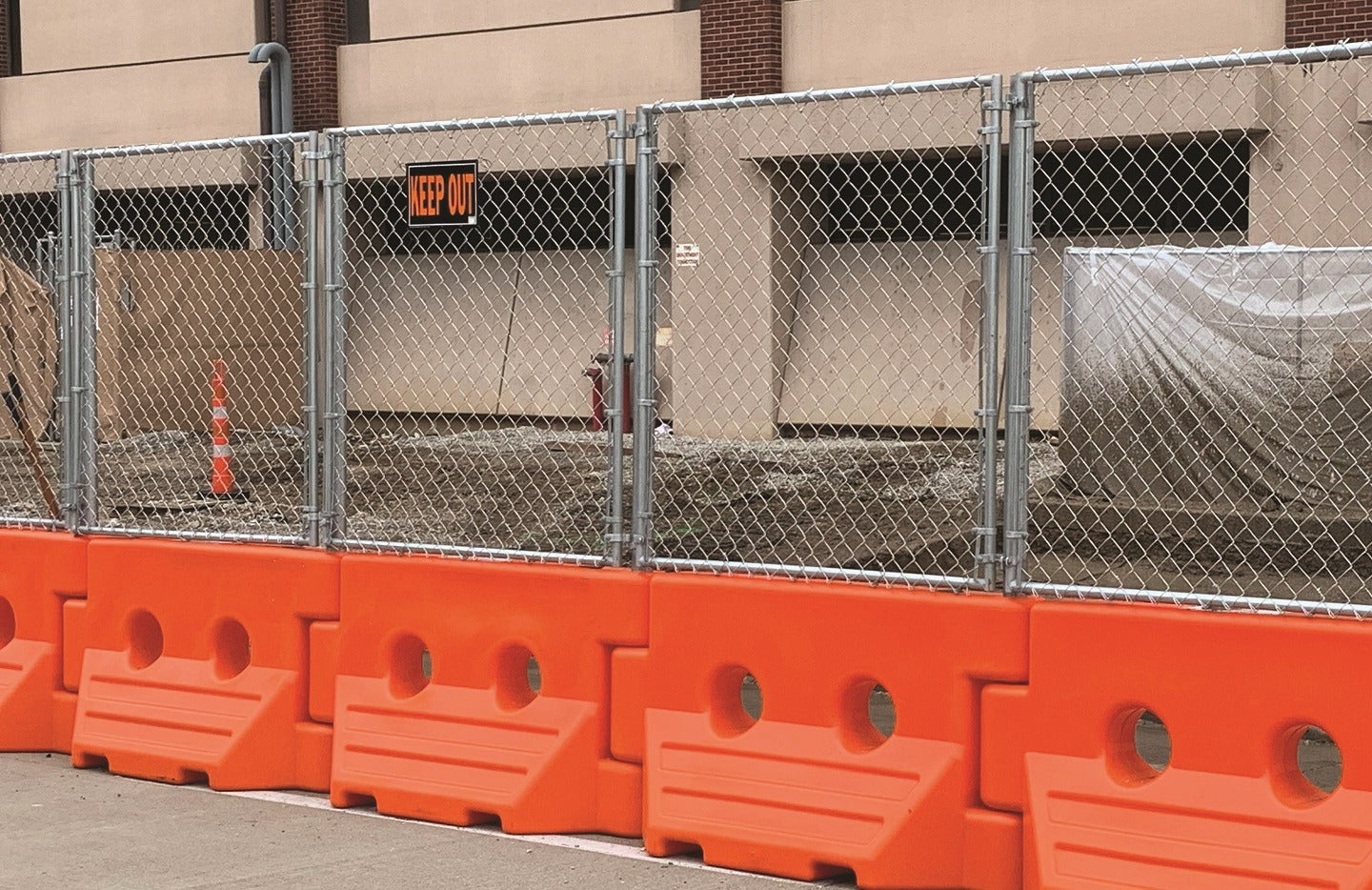

  • Accepts optional fence panels (ask us re special order of fence panels)
    • 137.16cm W x 2.44m H(54″W x 8’H) fencing – 7.62cm (3″) diameter posts
    • Optional fencing comes with clamps, posts and hardware

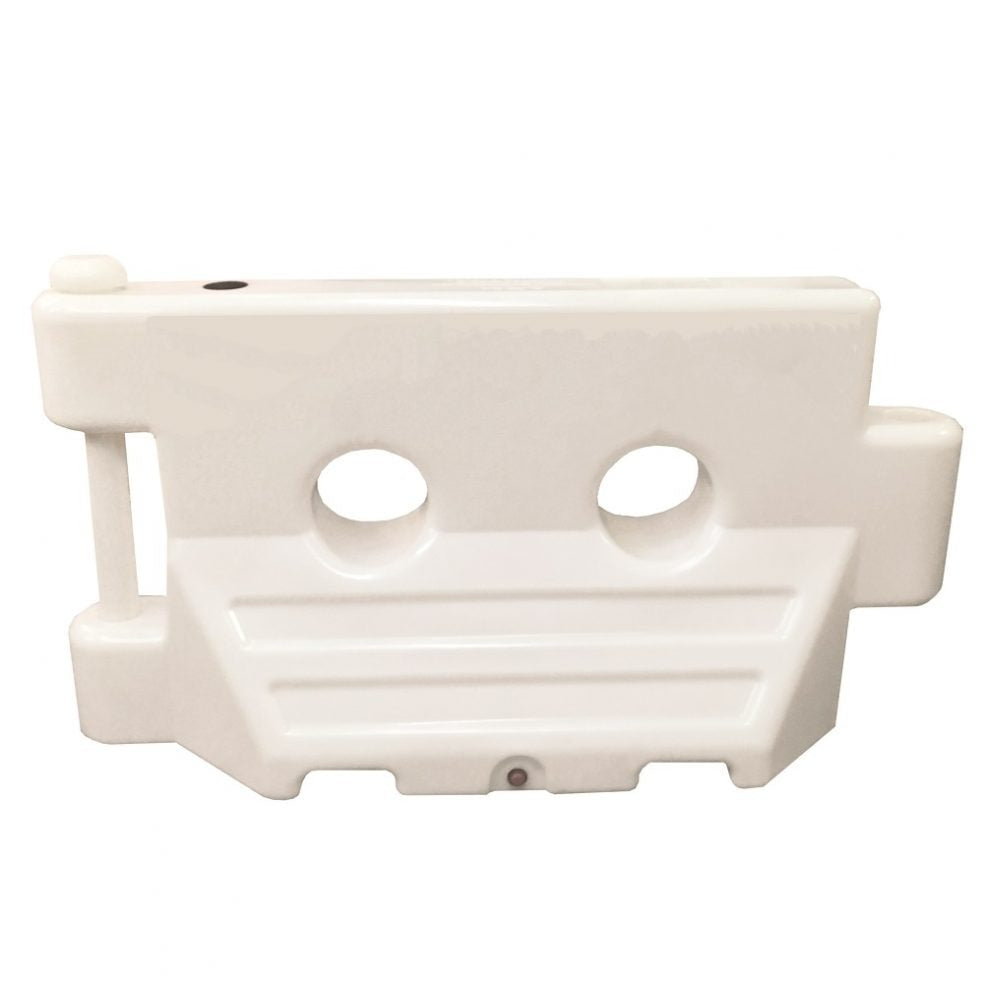

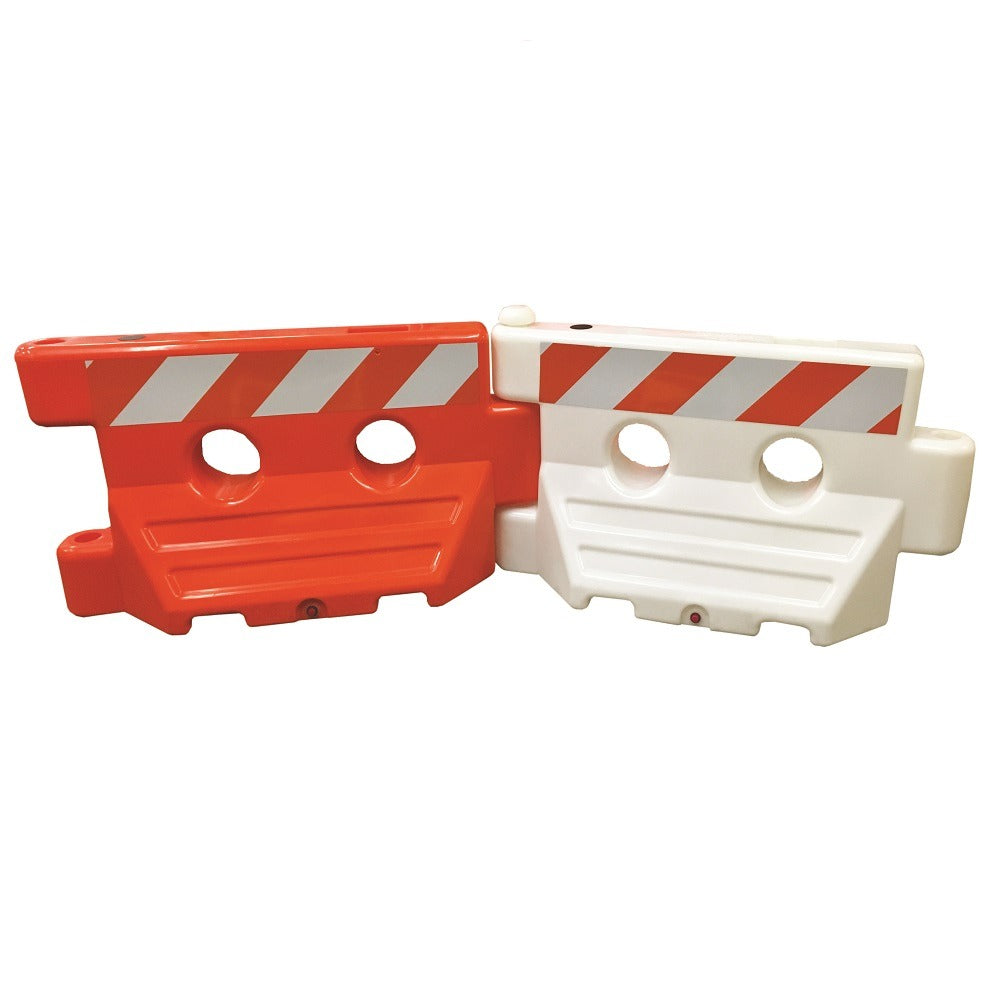

  • Standard barricade in orange and white – custom colors available
  • MASH Accepted WZ-387, Meets MUTCD Standards
  • Made in USA

Specifications

  • Material:  Medium density polyethylene
  • 152.4cm L x 60.96cm W x 91.44cm H (60″L x 24″W x 36″H)  Top Width 19.37cm (7 5/8″)
  • Connected length 152.4cm (60″)
  • Wall Thickness:  .125 +/- 20%
  • Fillable with water or sand
  • Weight:  22.68kg (50 lbs) when empty / Water Filled 310.89kg (683 lbs) / Connector pin 1.36kg (3 lbs)
  • Fills with 72 gallons of water – every unit is leak tested
  • Drain plug
  • Standard barricade light receptacle, use 12.7cm (5″) light bolt
  • Accepts optional fence panels (ask us re special order of fence panels)
    • 137.16cm W x 2.44m H (54″W x 8’H) fencing – 7.62cm (3″) diameter posts
    • Optional fencing comes with clamps, posts and hardware
  • Standard barricade in orange and white – custom colors available with 40 pc minimum
  • Select from No reflective, or HIP reflective striped sheeting at top of barricade  121.92cm x 20.32cm (48″ x 8″) on both sides
  • MASH Accepted WZ-387
  • Meets MUTCD Standards
  • Made in USA
  • Standard package: 1 pc (White Barricade with or without HIP sheeting and 1 connector pin)
  • Ships Floor Loaded out of Chicago, IL.
