Sundström SR 580/SR 584 Welding PAPR

Sundström SR 580/SR 584 Welding PAPR

Regular price $1,284.16 CAD
Regular price Sale price $1,284.16 CAD
Sale Sold out
Item Ships From Manufacturer
Shipping calculated at checkout.

Manufacturer: Sundstrom Safety Inc

Item # H06-8321Mfr. Model # H06-8321

Order from manufacturer

Quantity
Size
View full details

Product Details

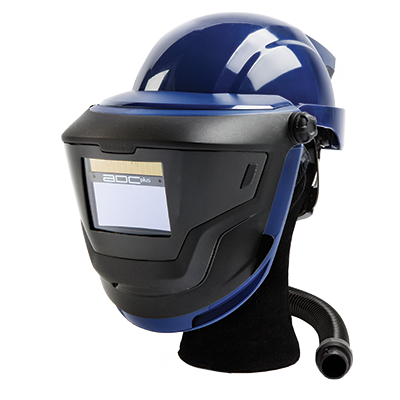

The Sundström SR 580/SR 584 (H06-8321) pairs the SR 580 loose-fitting hard hat with the SR 584 flip-up welding shield, giving welders head, eye, face and respiratory protection in a single unit. Used with the SR 500 or SR 700 powered air-purifying respirator (PAPR), it filters particulates, gases and vapours, including welding fume, in oxygen-sufficient, non-IDLH environments.

The shield guards against radiation and spatter from welding, flame cutting and grinding, and its compact shape suits confined or hard-to-reach work areas. Positive air pressure inside the helmet keeps fume out of the breathing zone during long or hot jobs.

Features

  • Assigned protection factor of 1000 when used with an approved Sundström PAPR
  • Ships with a passive shade 10 welding lens, a polycarbonate protective lens and a polyurethane breathing hose
  • Accepts passive lenses from shade 8 to 13, an auto-darkening lens (shade 4/9-13) and correction lenses
  • Flip-up welding shield, handy for grinding and checking work
  • Hard hat meets ANSI Z89.1 Type I Class G; eye and face protection meets ANSI Z87.1
  • Room for most earmuffs; optional leather neck and chest protection and hose covers

Accessories & Replacement Parts

  • H06-0121 – SR 500 PAPR Blower Unit
  • T06-4009 – Auto-Darkening Welding Lens, Shade 4/9-13
  • T06-4001 – SR 59008 Welding Lens, Shade 8
  • T06-4002 – SR 59009 Welding Lens, Shade 9
  • T06-4003 – SR 59010 Welding Lens, Shade 10
  • T06-4004 – SR 59011 Welding Lens, Shade 11
  • T06-4005 – SR 59012 Welding Lens, Shade 12
  • T06-4006 – SR 59013 Welding Lens, Shade 13
  • T06-4010 – Correction Lens, 1.0 Dioptres
  • T06-4011 – Correction Lens, 1.5 Dioptres
  • T06-4012 – Correction Lens, 2.0 Dioptres
  • T06-4013 – Correction Lens, 2.5 Dioptres
  • T06-8011 – SR 585-1 Welding Neck & Chest Protection
  • T06-0808 – SR 585-2 Leather Neck & Chest Protection
  • T06-0809 – Face Seal with Leather Protection
  • T06-8012 – Welding Face Seal
  • T06-4016 – SR 59021 Hose Protection
  • T06-0803 – Neck Comfort Band
  • T06-8010 – SR 584 Welding Shield Assembly
  • R06-0820 – Attachment Knobs for SR 584
  • R06-0821 – Knob Set for SR 584
  • R06-0810 – Breathing Hose for SR 580

Specifications

Item Welding PAPR Hard Hat with Welding Shield
Brand Sundström
Mfr. Model # H06-8321 (SR 580/SR 584)
Facepiece Type Loose-Fitting Hard Hat with Flip-Up Welding Shield
For Use With SR 500 or SR 700 Battery-Powered PAPR
Assigned Protection Factor 1000 (with approved PAPR)
Approvals NIOSH 42 CFR Part 84 (with approved PAPR); ANSI Z87.1; ANSI Z89.1 Type I Class G
Welding Lens Supplied Passive Shade 10, 110 x 90 mm
Protective Lens Polycarbonate, 110 x 90 mm
Optional Welding Lenses Shade 8 to 13 Passive; Auto-Darkening 4/9-13
Correction Lens Options 1.0 to 2.5 Dioptres, 108 x 51 mm
Shield Material PA/EPDM
Weight Approx. 1065 g (37.6 oz) with Breathing Hose
Operating Temperature -10 to +55 °C (14 to 131 °F), below 90% RH
Storage Temperature -20 to +40 °C (-4 to 104 °F), below 90% RH
Country of Manufacture Sweden
