MSA XTIRPA, Workman Winch

Description

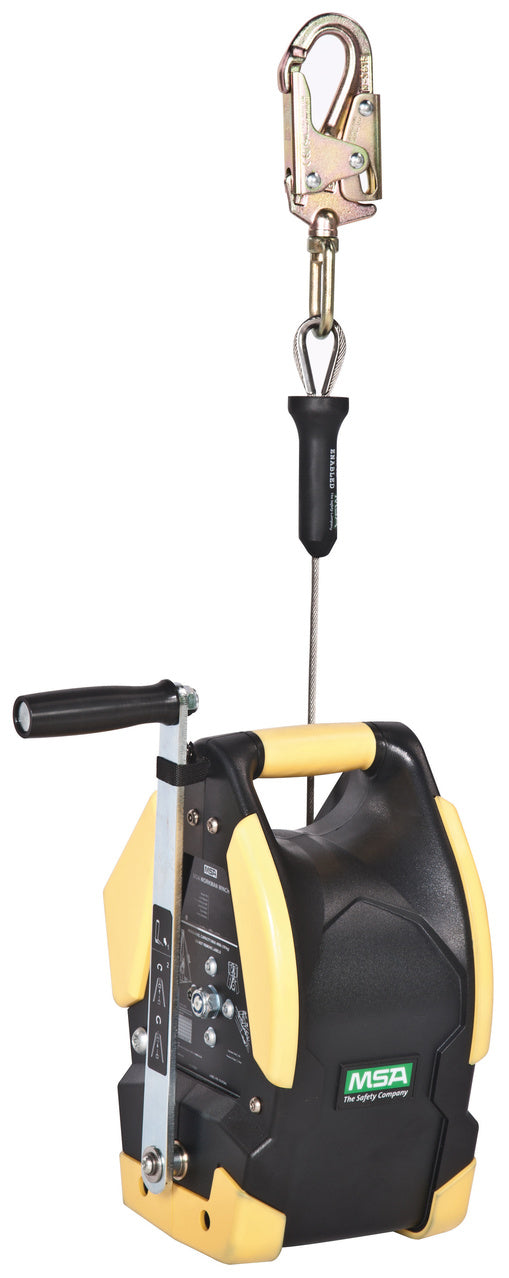

The maximum workload is 400 lbs. for personnel and 620 lbs. for materials. Includes integral RFID technology and self-locking swivel 36C snap-hook. Stainless steel cable, 65 ft. (20m). Unit weight: 30 lbs.

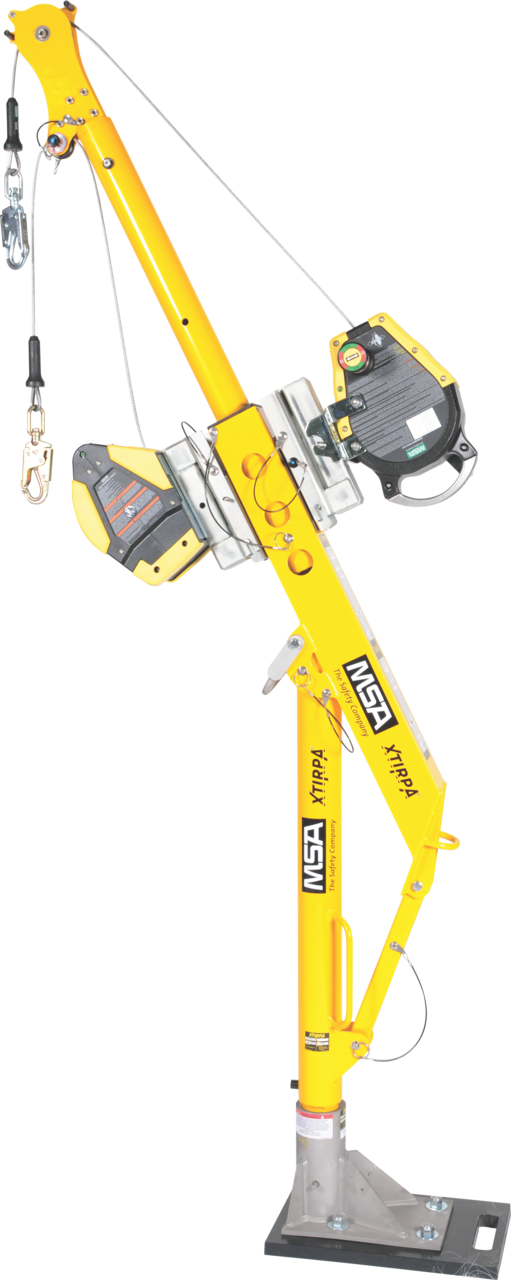

The Workman Winch is the SRL designed for all of the MSA XTIRPA collections. The SRL must be mounted to a mounting bracket on the arm of the davit system. The workman winch can be paired with a workman rescuer on every XTIRPA davit excluding the pole hoist system.

Features

The Workman Winch can be used on the following davit systems; The Counter Weight System

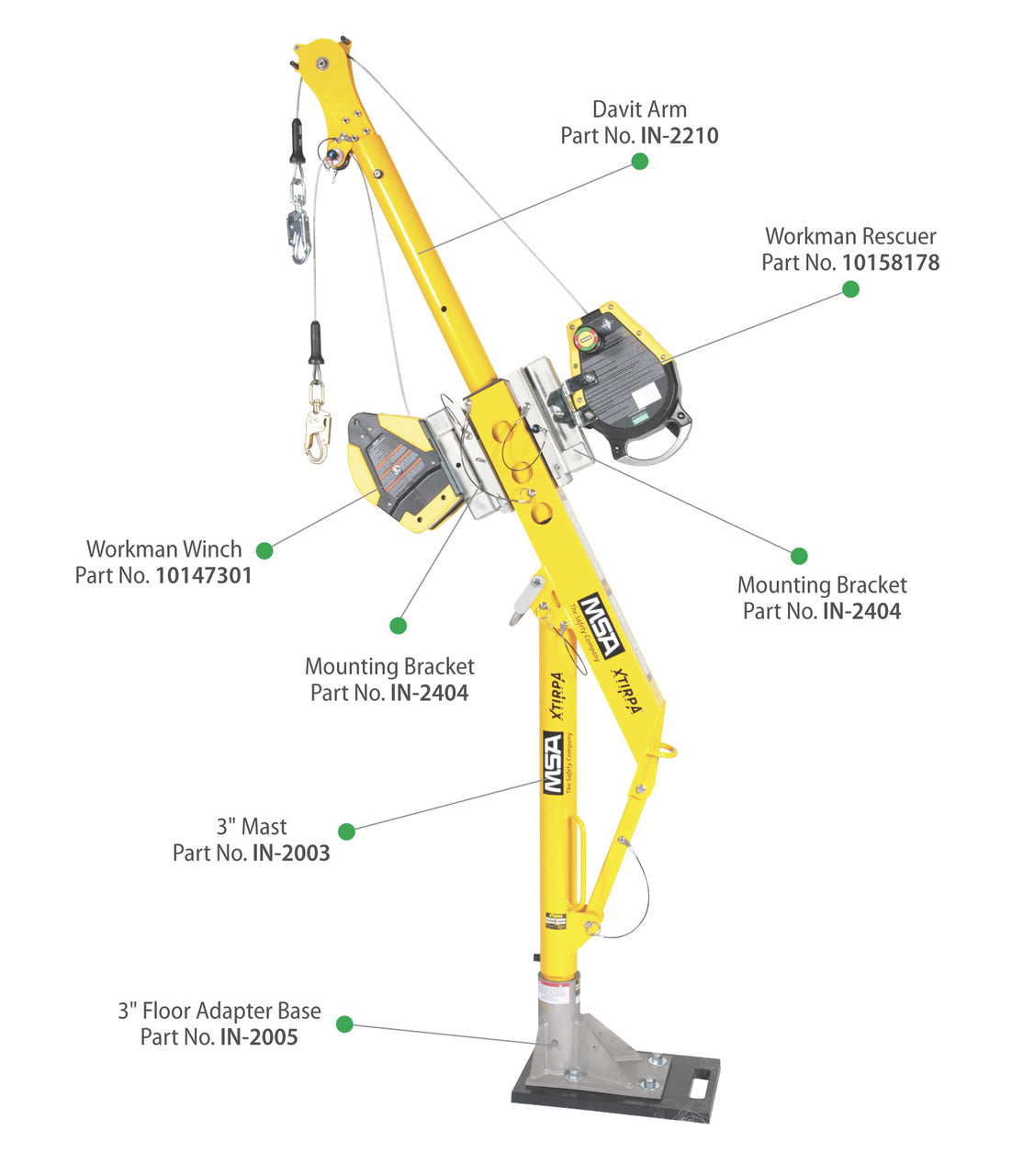

This Workman Winch (10147301) would be attached to the mounting bracket (IN-2404) on the arm of the davit system.

MSA XTIRPA Manhole Gaurd System Page 2-3

MSA XTIRPA Adapter Base System- 24" Page 4-5

MSA XTIRPA Hitch Mount System  Page 8-9

MSA XTIRPA Adjustable Wall Adapter System  Page 10-11

MSA XTIRPA Manhole Collar System  Page 12-13

MSA XTIRPA Adapter Base System- 30-48" Reach  Page 14-15

MSA XTIRPA Pole Hoist System  Page 16-17

MSA XTIRPA Counter Weight System  Page 18-19
