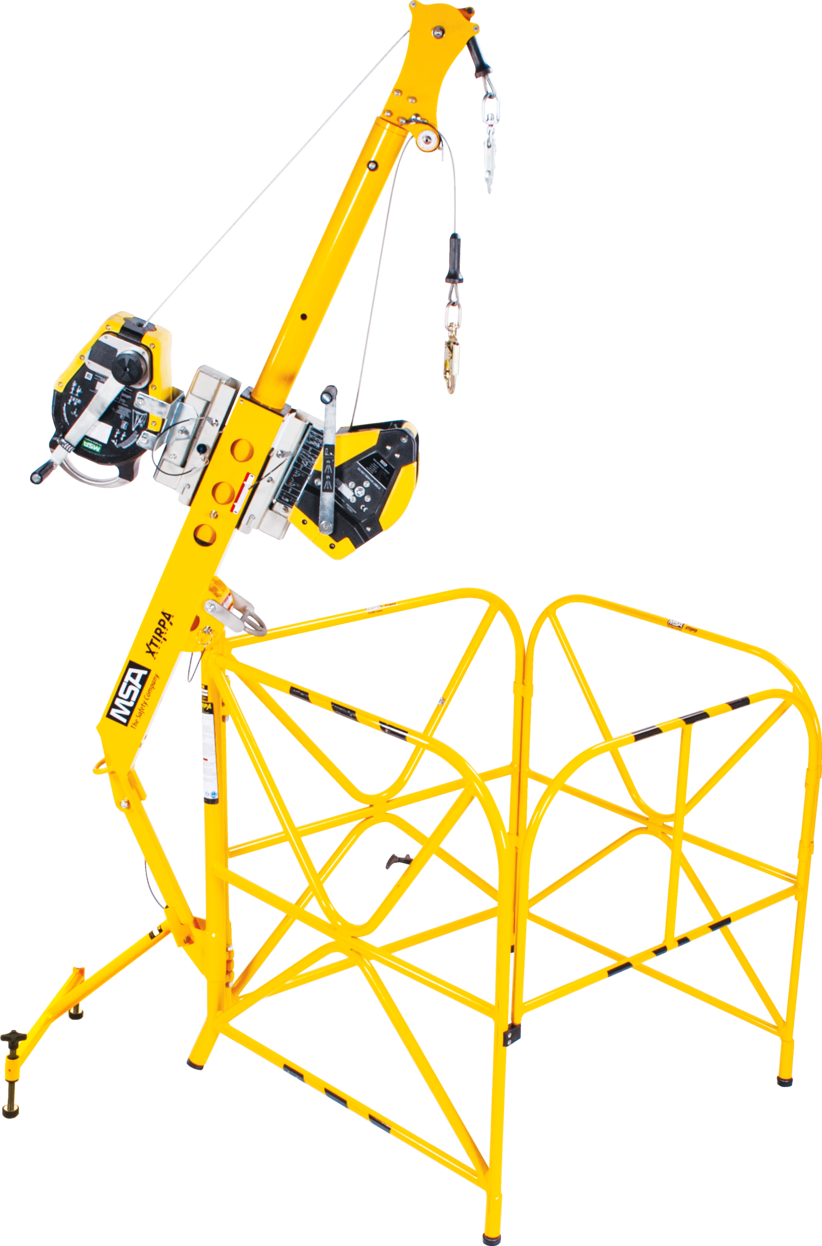

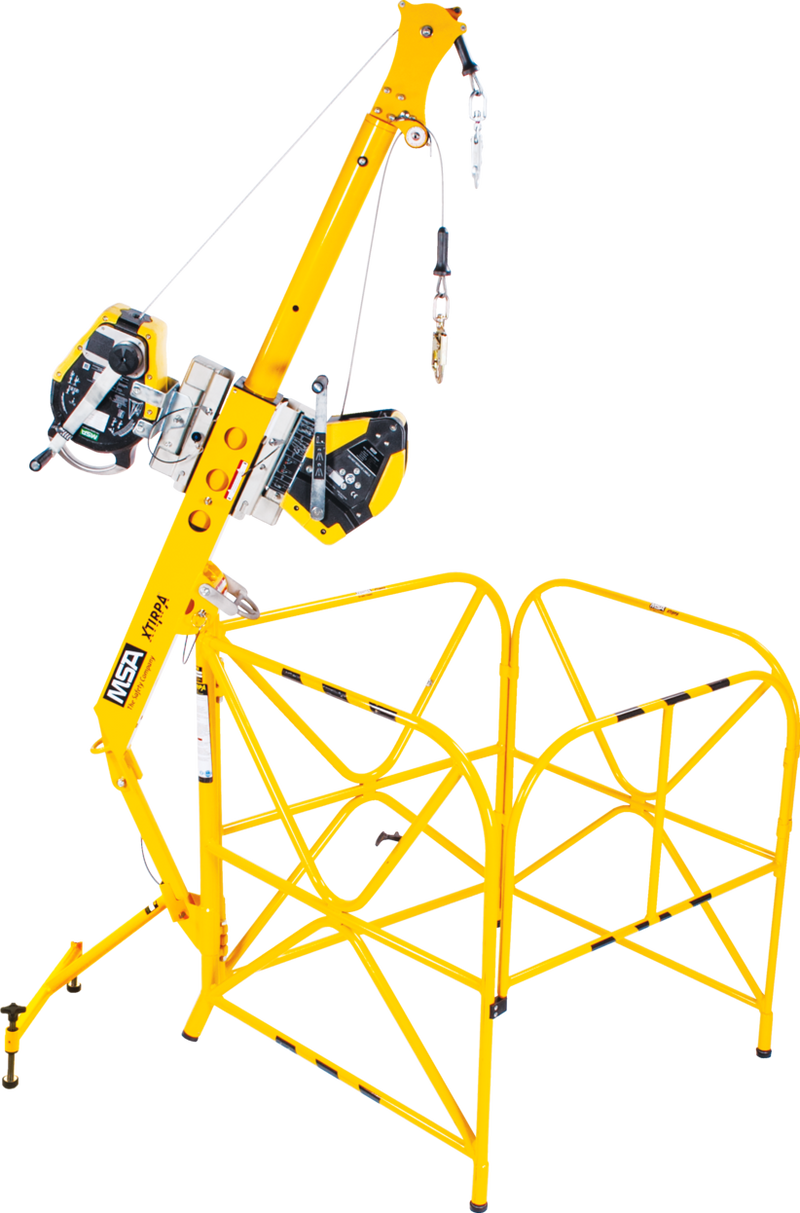

Manhole Guard Systems are portable anchorage connectors used for vertical entry into confined spaces. The Manhole Guard with Integrated Mast barricades exposed entry points while providing the necessary strength needed for fall protection, entry and retrieval applications. The Davit Arm and Manhole Guard with Integrated Mast interface allow for reduced material surrounding the confined space entry, thus reducing the presence of trip and fall hazards.

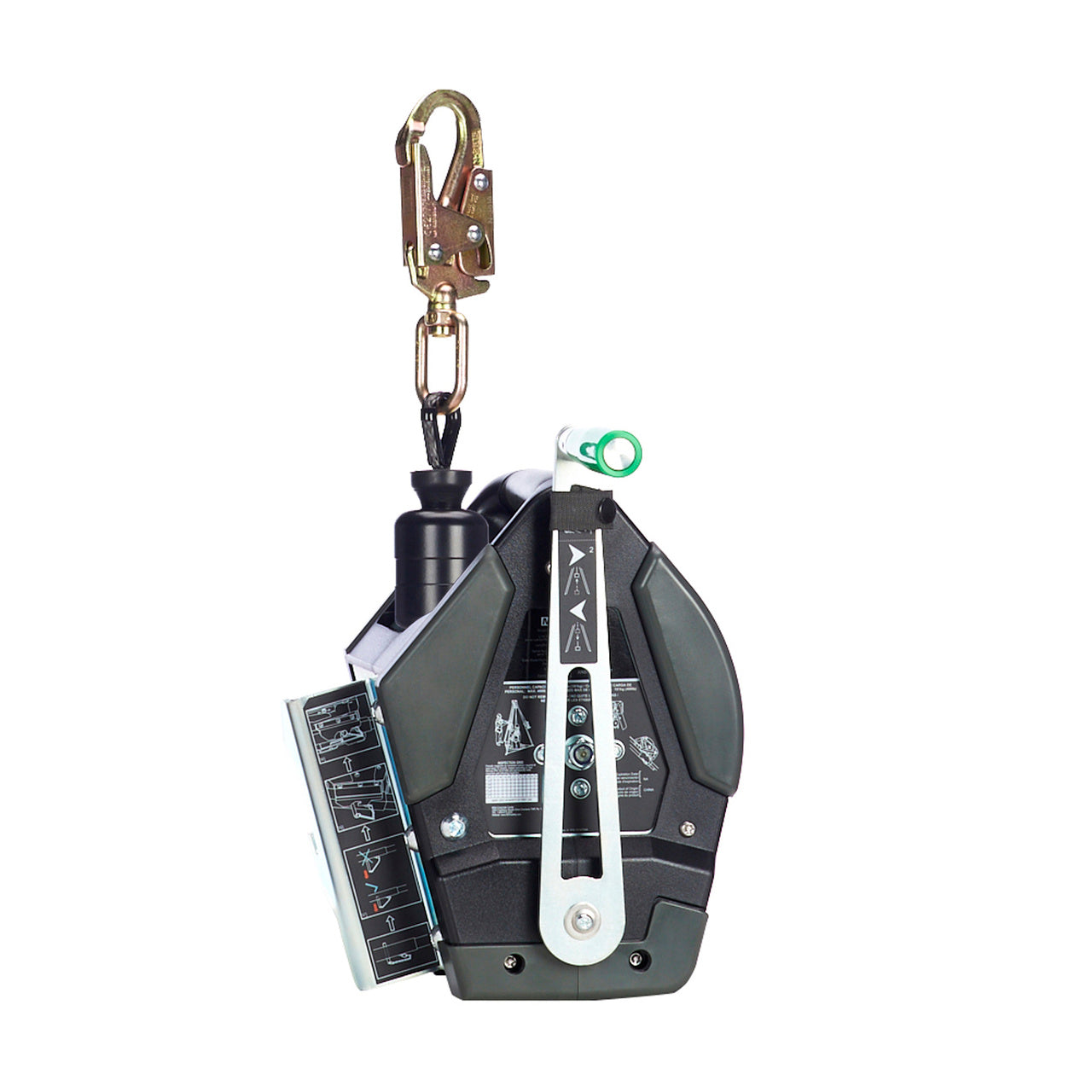

Workman Rescuer SRL. Fast, easy and intuitive fall protection SRL with integral bi-directional retrieval capability. Stainless steel cable, 50 ft. (16m).

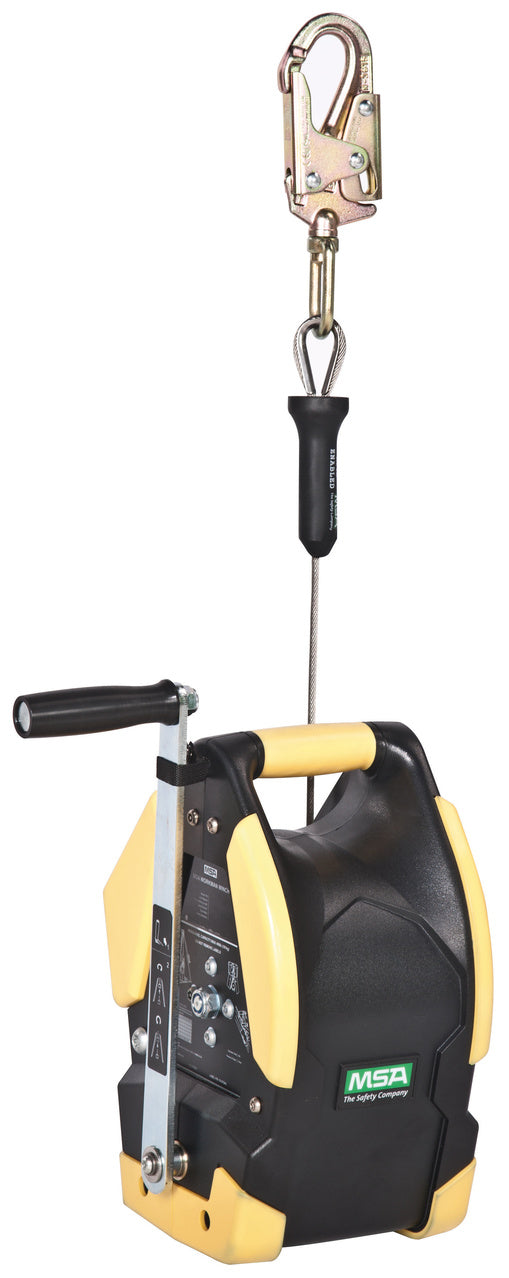

Workman Winch SRL.The maximum workload is 400 lbs. for personnel and 620 lbs. for materials. It Includes integral RFID technology and a self-locking swivel 36C snap-hook. Stainless steel cable, 65 ft. (20m).

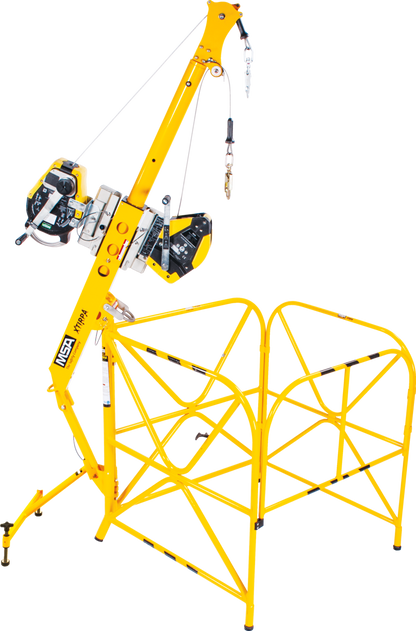

400 lbs. (181 kg) as pictured with Workman Rescuer and Workman Winch
Features

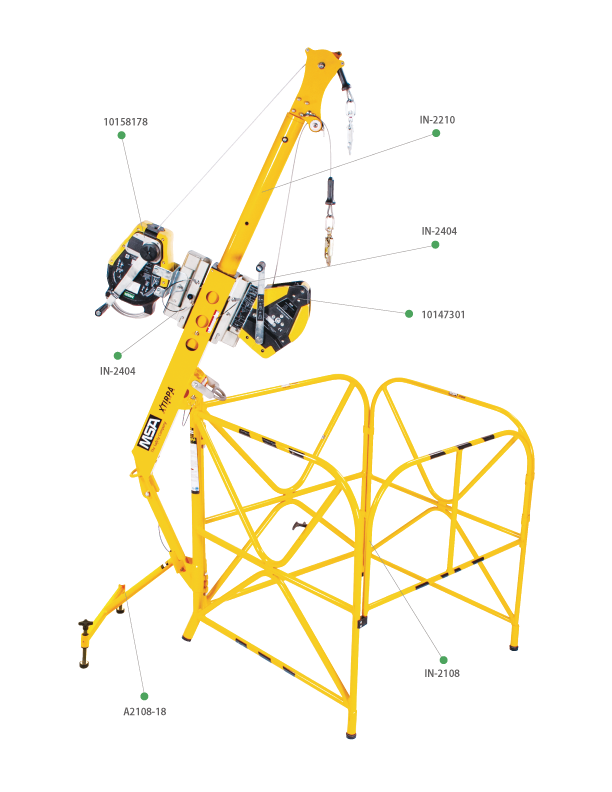

Base Model

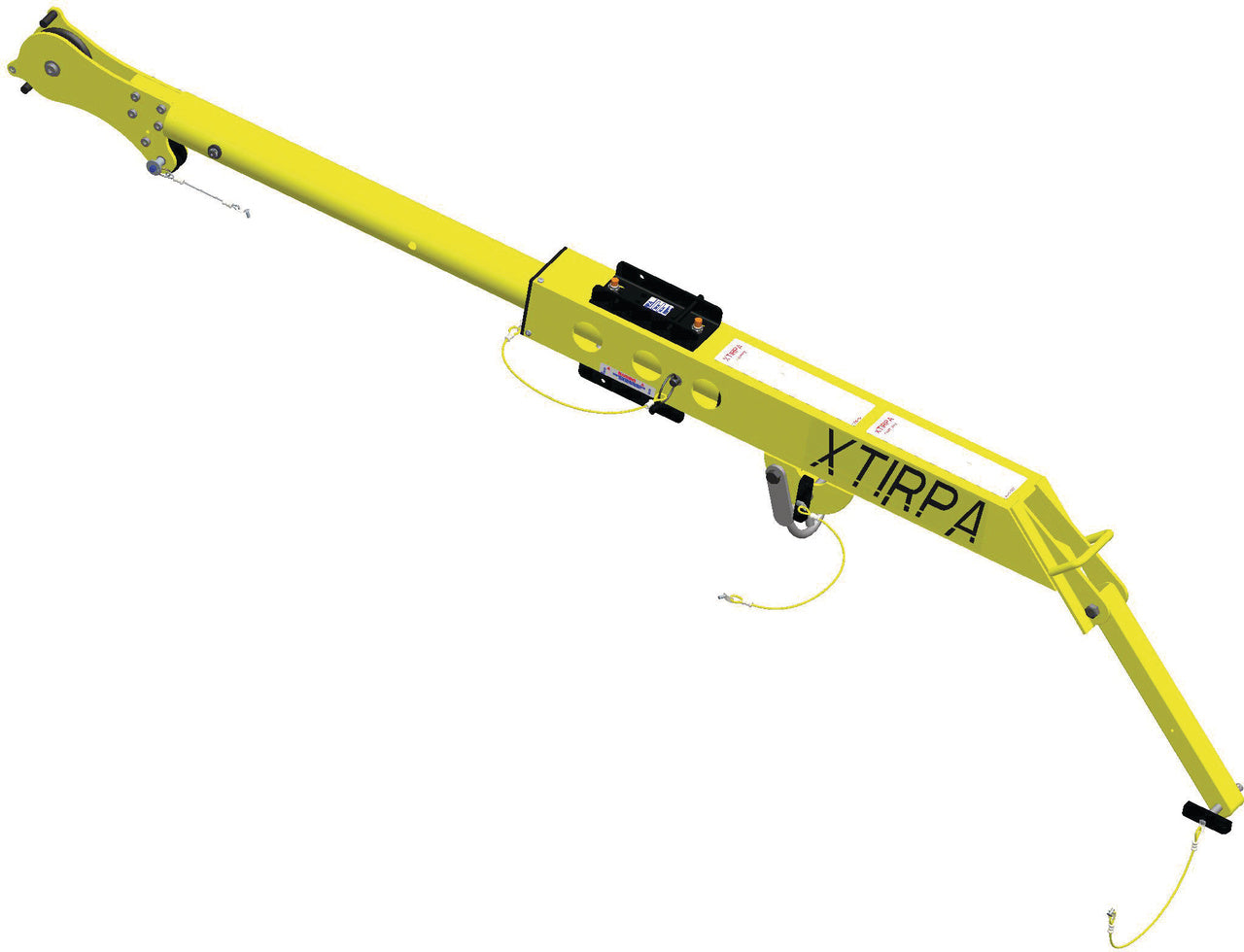

Davit Arm (IN-2210)

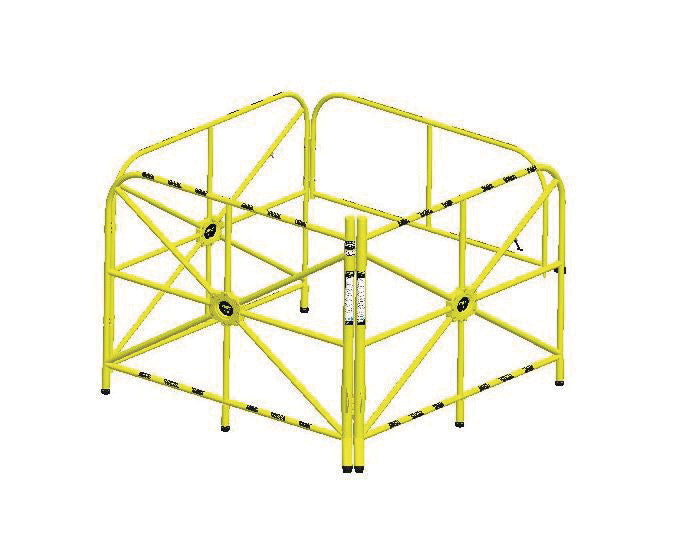

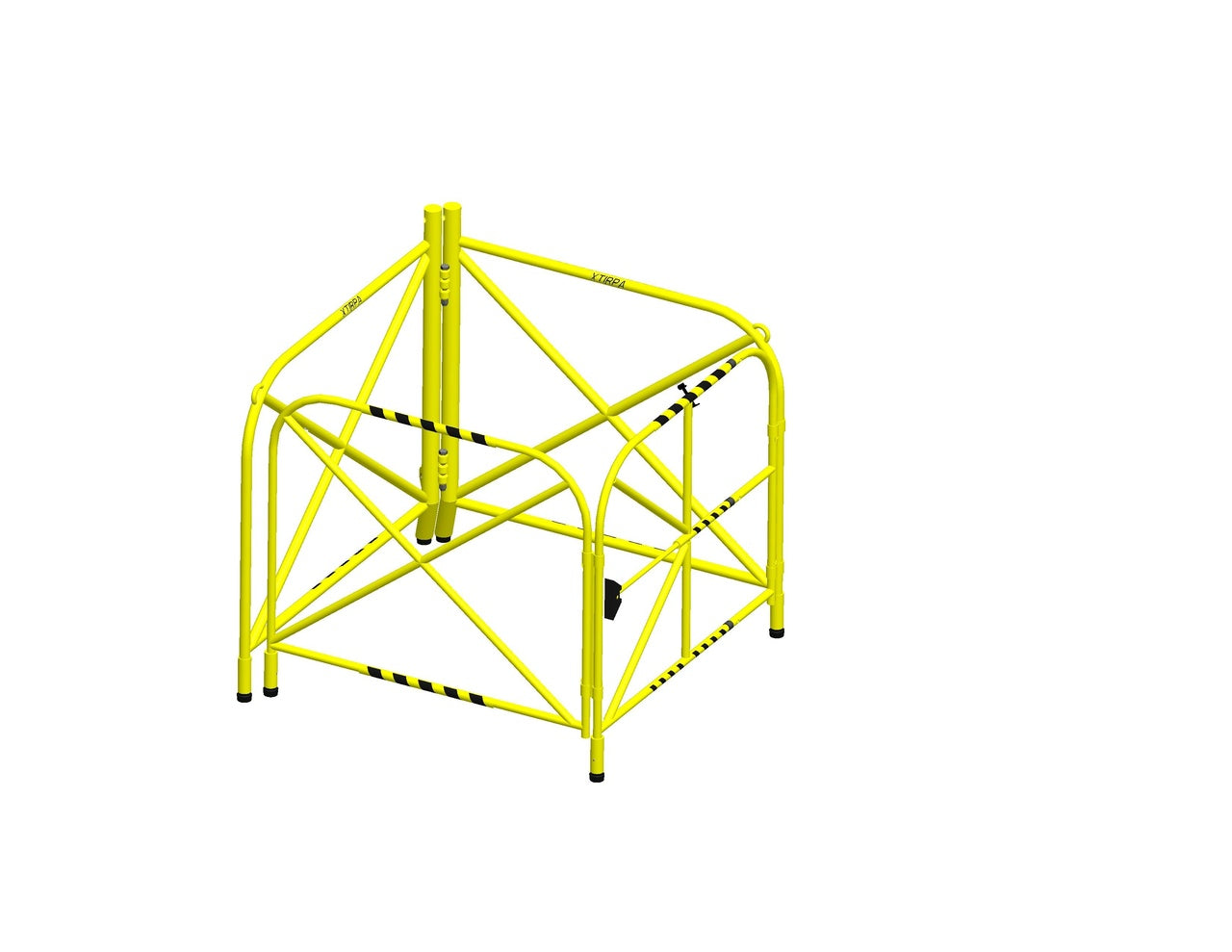

Manhole Guard with Integrated Mast (IN-2108) OR Large Manhole Guard with Integrated Mast (IN-2324)

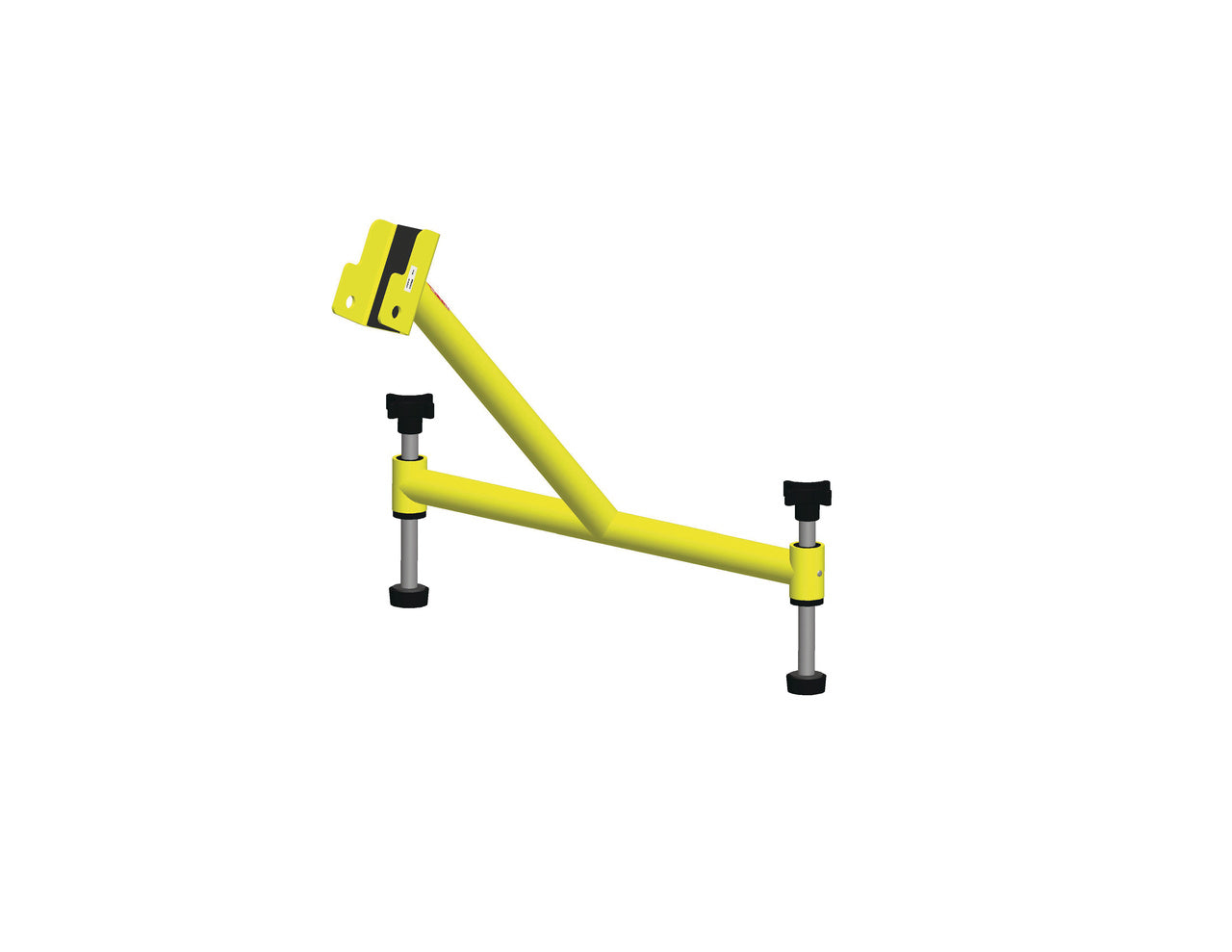

(Optional) Stabilizer for Manhole Gaurd (A2108-18)
Customization
There are two options for guards to create an optimally safe work area, As well as There are additional barricades that can be added. (IN-2101)
Stabilizers (A2108-20)
Kick plates to prevent debris from falling into the confined space (IN-2176)
Mast Extensions (IN-2044)
All of the customization options and additional parts can be found in the SupplyNow Davits section. A list of compatible parts for this Davit System can be found in the link below.
