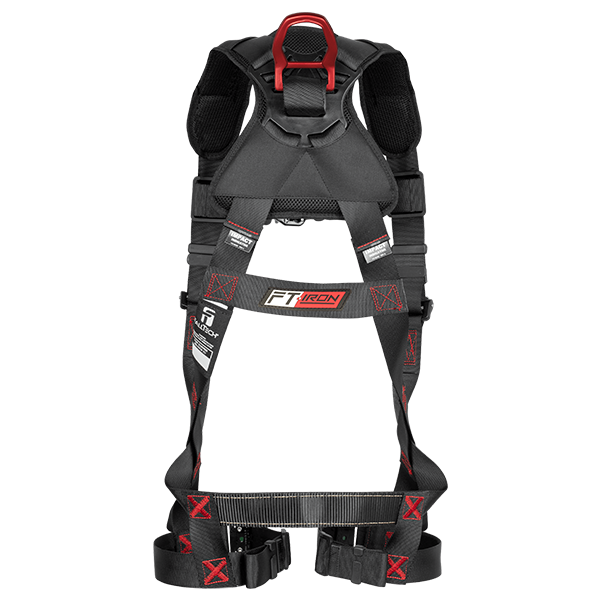

FT-Iron Safety Harness with Quick Connect Buckles

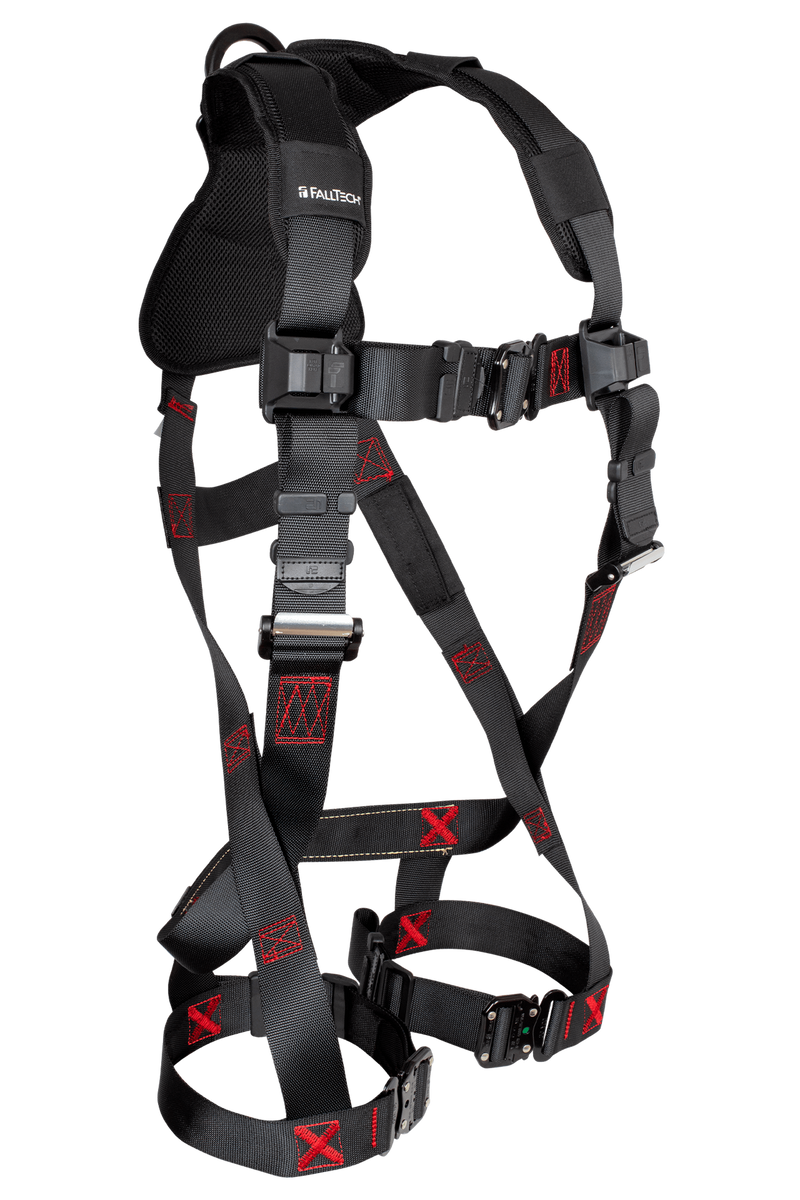

FT-Iron 1D Standard Non-Belted Full Body Harness, With Quick Connect or Tongue And Buckle Leg Adjustment

Features

• Comfort Legs® lateral leg strap construction greatly improves mobility and comfort

• Reinforced sub-pelvic strap features durable wear pad for extended product service life

• ArrowGrip® dorsal D-ring plate and new slip-resistant connectors minimize slippage for maximum comfort and minimal adjustment throughout the day

• Features integral tri-layer padded shoulder yoke to provide breathable user comfort

• Updated SRL connection point allows for fast, hassle-free attachment of all types of single and twin SRLs

• Durable lanyard keeper design improves versatility and reusability while maintaining ANSI compliance

• Quick-connect chest and leg buckle features visual indicator showing positive connection

• Includes fully adjustable suspension trauma relief system


Material Specifications

• Webbing: Polyester; 5,000 lb min. static strength

• D-rings: Aluminum alloy; 5,000 lb min. static strength

• Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb min. static strength


Performance Specifications

• Static Strength: 3,600 lb min.

• ANSI User Capacity: 130 to 310 lb max.

• OSHA User Capacity: 130 to 425 lb max.


Sizes & Part Numbers

8141BXS - XS
8141BSM - Dual-size Small/Med
8141BLXL - Dual-size Large/XL
8141B2X3X - Dual-size 2X/3X

Downloads

Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Harness Sizing Chart

Compliant With:

• ANSI Z359.11-2021
• CSA Z259.10-2018
• OSHA 1926.502 and 1910.66
