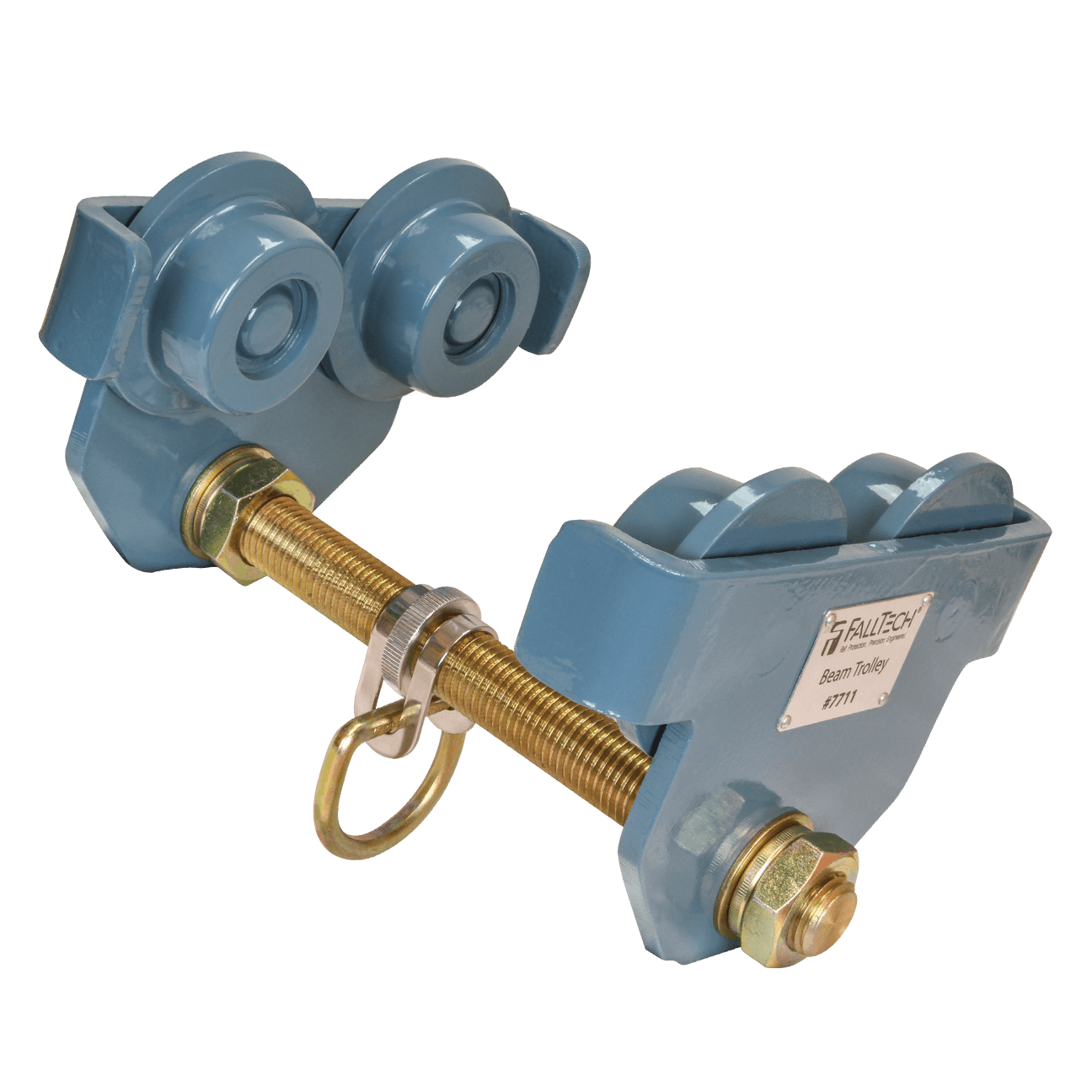

8" All-steel Beam Trolley Anchor

Description

8" All-steel Beam Trolley Anchor

Features

• Features single trolley adjustment and threaded steel crossbar
• Includes steel wheels, side plates and adjustment rings.
• Fits beam flanges from 3" to 8" wide and up to 2-1/4" thick
• For temporary or permanent installation on overhead horizontal I-beams
• Complies with ANSI Z359.18-2017

Product Specifications

• Single-trolley Adjustment
• Steel wheels and crossbar
• D-ring; Plated alloy steel; 5,000 lb min. static strength
• Crossbar; Plated carbon steel
• Wheel Plated; Powder coated carbon steel
• Static Strength 5,000 lb min.
• ANSI User Capacity 130 to 310 lb max.
• OSHA User Capacity130 to 425 lb max.
