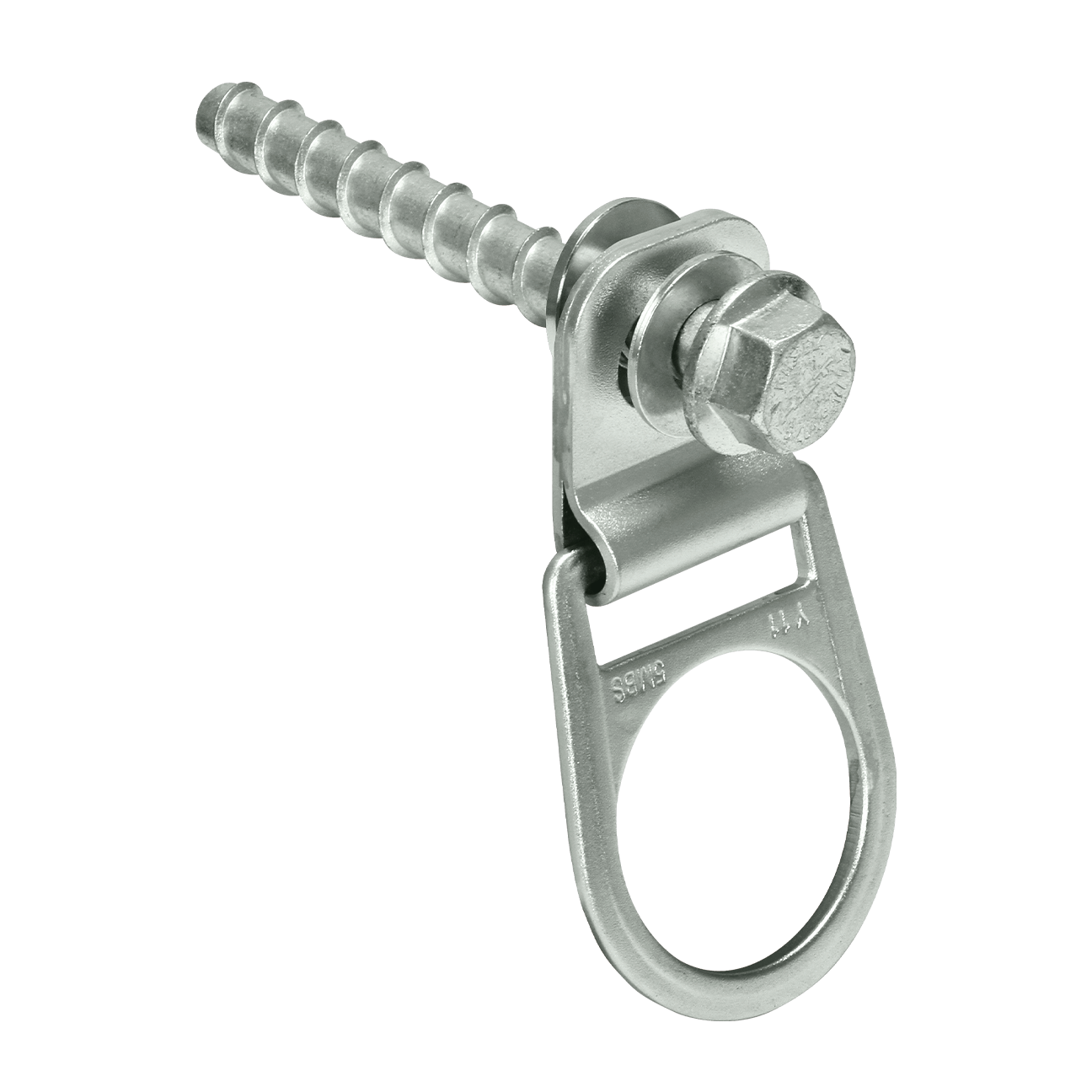

Rotating D-ring Anchor with Concrete Screw

Description

Rotating D-ring Anchor with Concrete Screw

Features

• Features stainless steel anchoring plate with alloy steel connecting D-ring
• Precision-cut bushing provides 360° D-ring rotation.
• Ideally suited for temporary or permanent installation in cured concrete
• Features reusable anchoring plate and D-ring
• Meets OSHA 1926.502 regulations

Product Specifications

• Bolt-on Concrete Screw
• For cured concrete
• Anchoring Plate; Plated stainless steel
• D-ring; Plated alloy steel; 5,000 lb min. static strength

• Static Strength; 5,000 lb min.
• ANSI User Capacity; 130 to 310 lb max.
• OSHA User Capacity; 130 to 425 lb max.
