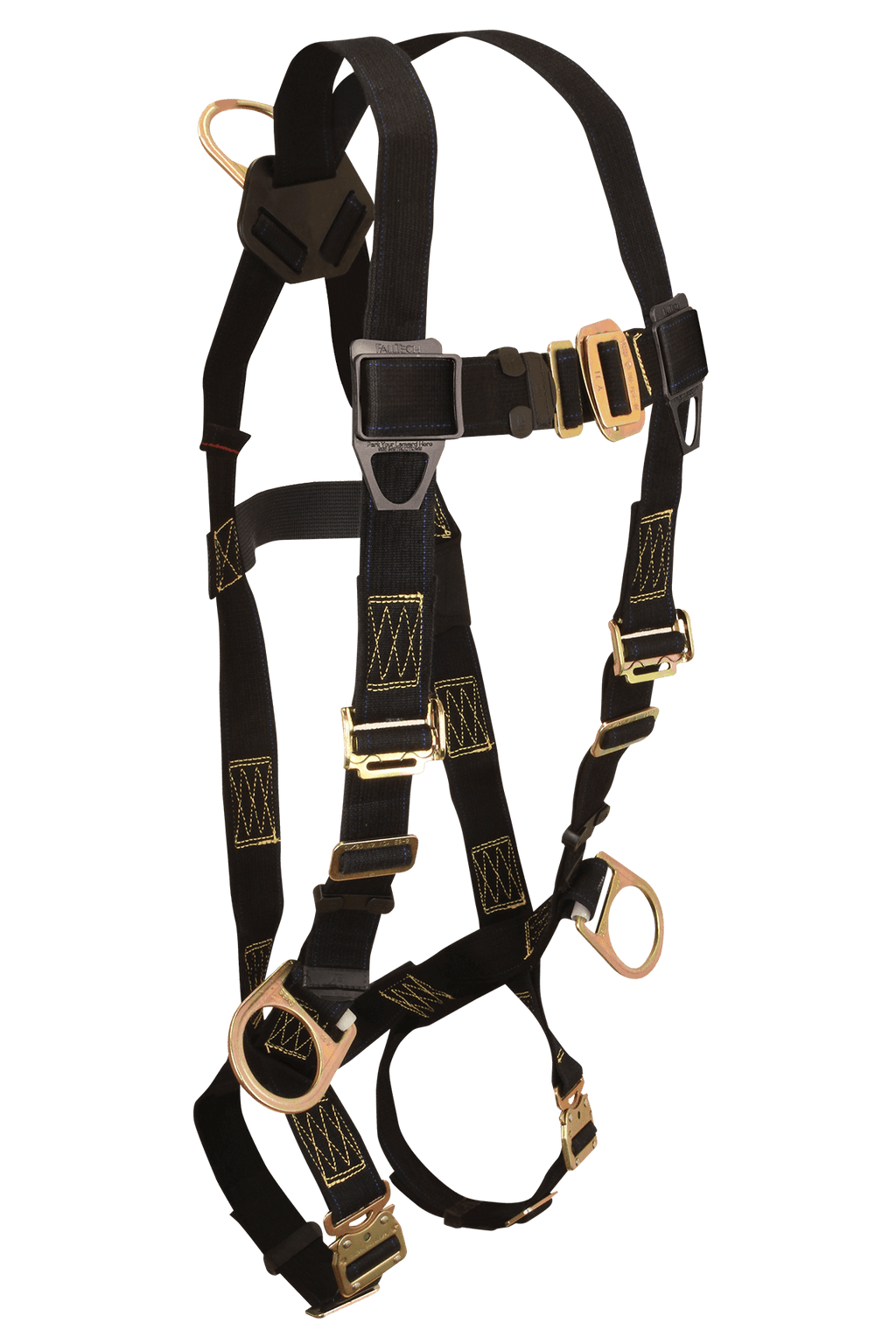

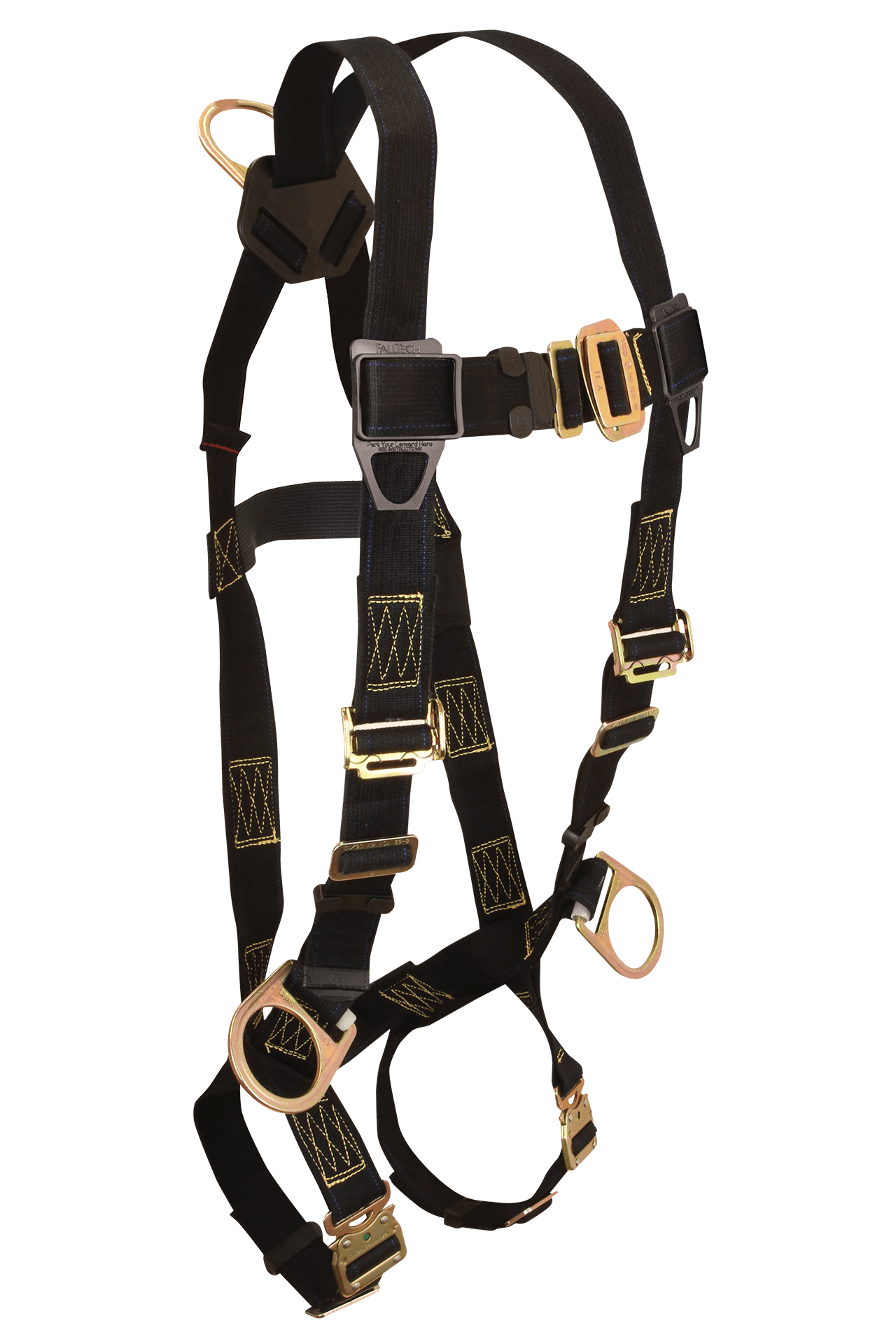

WeldTech 3 D-ring Standard Non-belted Full Body Harness

Features

• Features Nomex® webbing with Kevlar® fibre core throughout shoulders, torso and legs for pliable user-comfort
• Nomex®/Kevlar® blend webbing delivers excellent burn and spatters resistance common in hot-work welding applications.
• Friction roller torso adjusters provide simple upper-body adjustment
• D-rings, mating buckle chest, and quick-connect leg closures are all durably finished with plated alloy steel construction
• Quick-connect buckles feature visual indicators showing a positive connection


Material Specifications

• Webbing: Nomex®/Kevlar®; 5,000 lb min. static strength
  D-rings: Plated alloy steel; 5,000 lb min. static strength
  Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength


Performance Specifications

• Fall Arrest and Work Positioning

• Dorsal and Hip D-rings
• Static Strength: 3,600 lb min.

• ANSI User Capacity: 130 to 310 lb max.

• OSHA User Capacity: 130 to 425 lb max.


Downloads

Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Harness Sizing Chart

Compliant With:

• CSA Z259.10-2018
• ANSI Z359.11-2014
• OSHA 1926.502 and 1910.66
