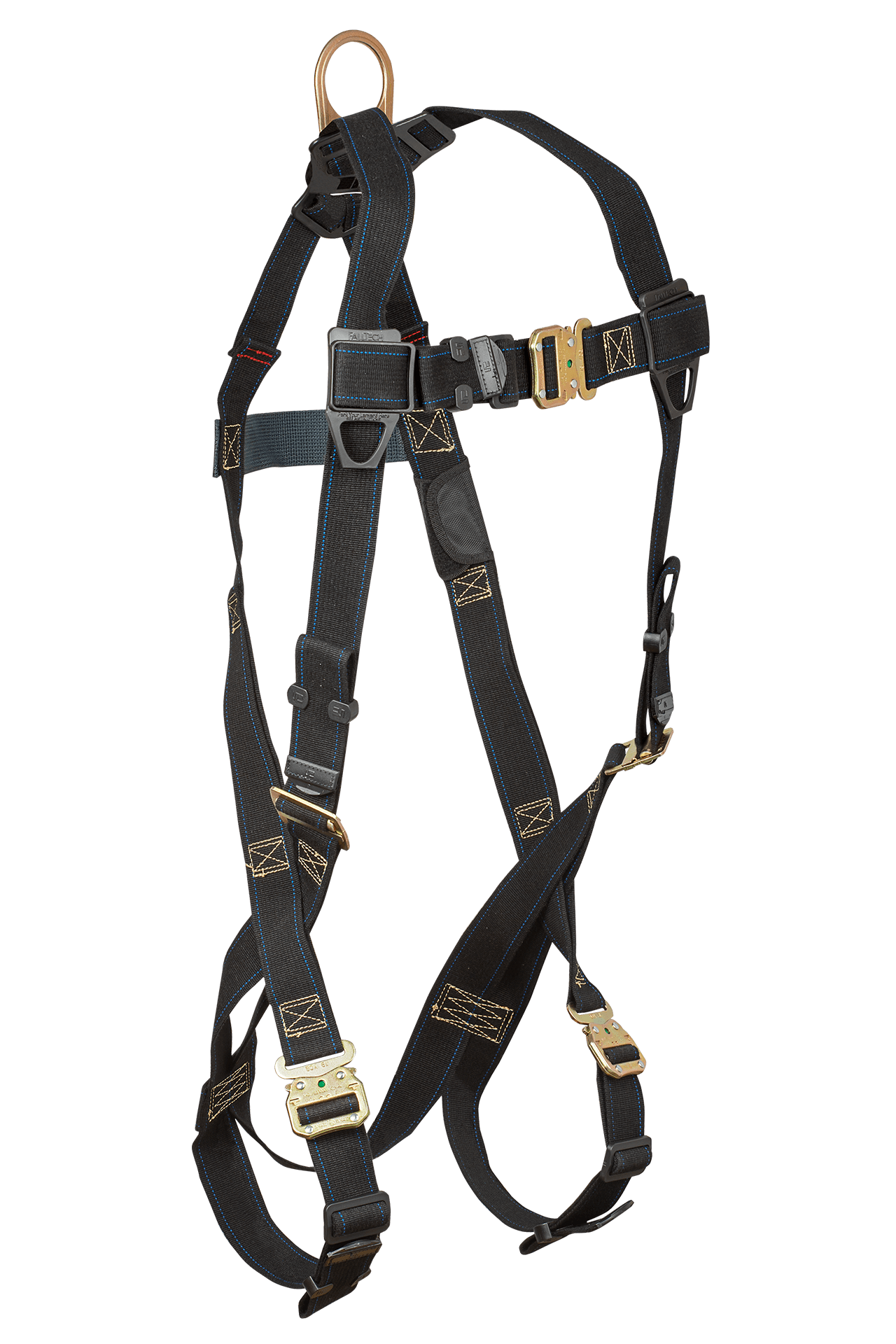

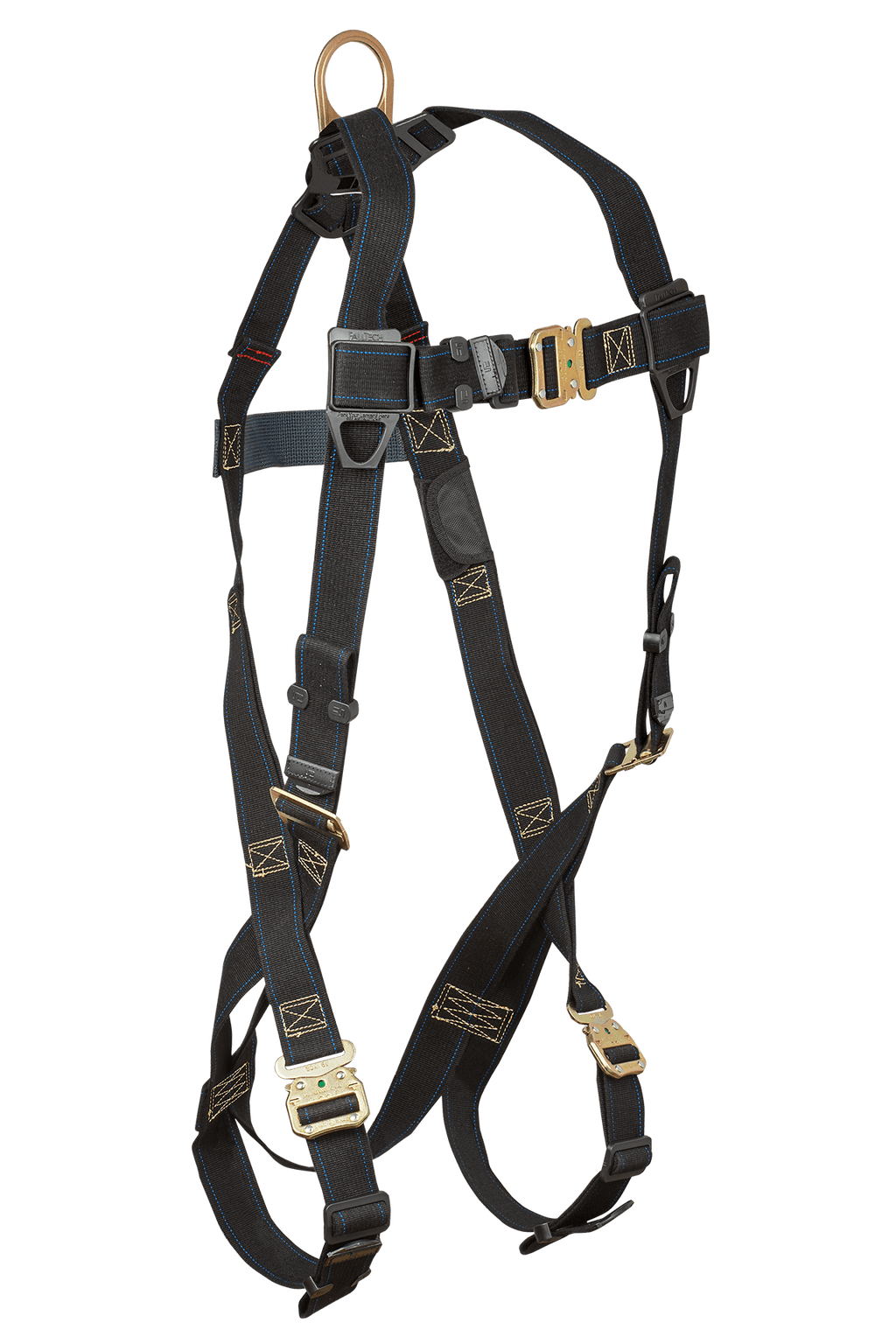

WeldTech 1D Standard Non-belted Full Body Harness, Quick Connect Adjustment

Features

• Features Nomex® webbing with Kevlar® fibre core throughout shoulders, torso, and legs for pliable user-comfort
• Nomex®/Kevlar® blend webbing delivers excellent burn and spatters resistance common in hot-work welding applications.
• Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment
• Dorsal D-ring, quick connect-chest, and leg closures are all durably finished with plated alloy steel construction
• Quick-connect buckles feature visual indicators showing a positive connection


Material Specifications

Webbing: Nomex®/Kevlar®; 5,000 lb min. static strength
D-ring: Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength

Performance Specifications

• Fall Arrest
• Static Strength: 3,600 lb min.

• ANSI User Capacity: 130 to 310 lb max.

• OSHA User Capacity: 130 to 425 lb max.

Sizes & Part Numbers

7038QCS - Small
7038QCM - Medium
7038QCL - Large
7038QCXL - XL
7038QC2X - 2X

Downloads:
Instruction Manual
Declaration of Conformity
Harness Sizing Chart

• Compliant With:
  ANSI Z359.11-2014
  OSHA 1926.502 and 1910.66
