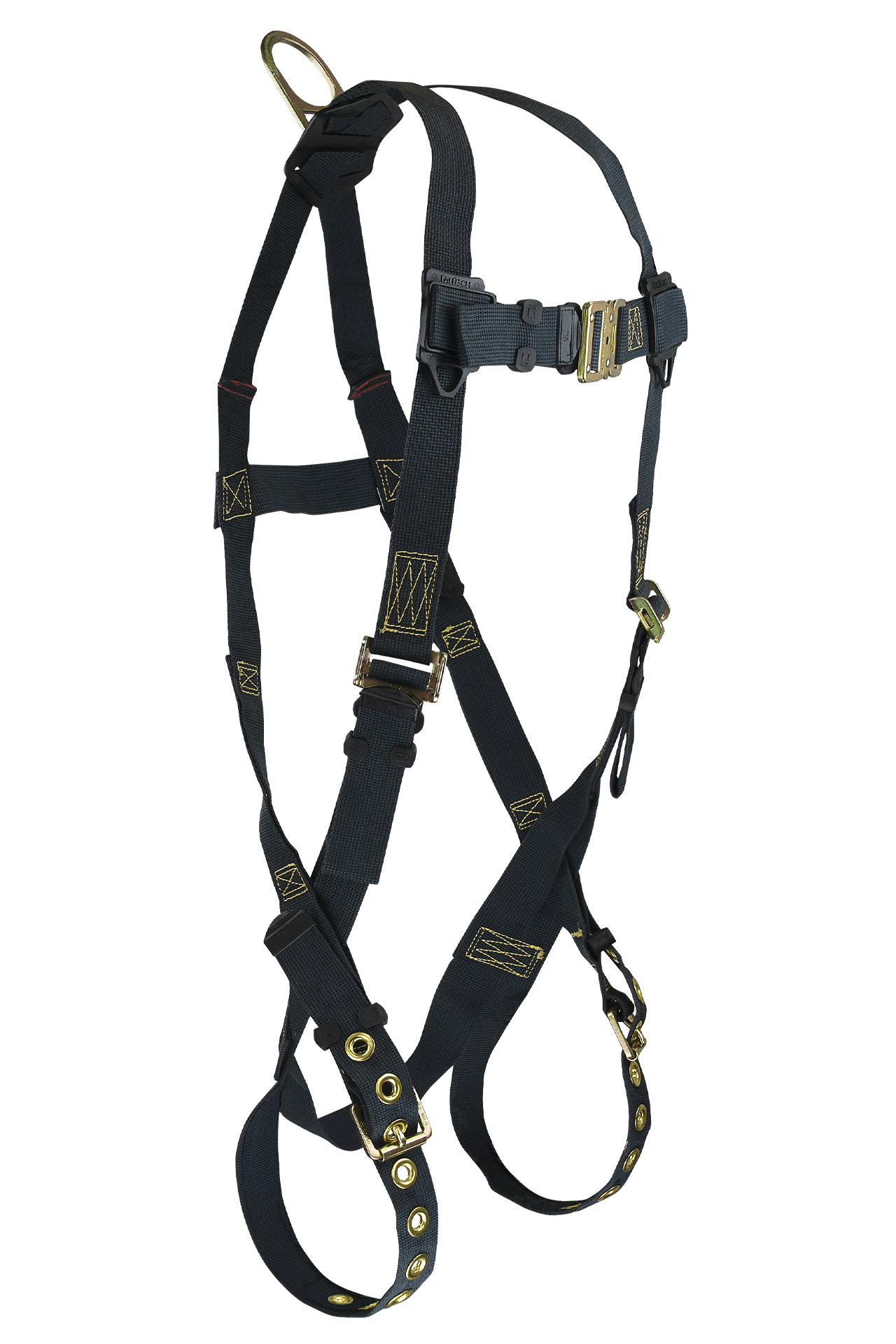

WeldTech 1 D-Ring Standard Kevlar Non-belted Full Body Harness

Features

• Features Kevlar® webbing throughout shoulders, torso, and legs
• Kevlar® webbing delivers the highest level of burn and spatters resistance common in hot-work welding applications.
• Uniquely grommeted Kevlar® leg straps feature 9 adjustment positions for an expanded range of fit
• Friction roller torso adjusters provide simple upper-body adjustment
• D-ring, quick connect chest, and tongue buckle leg closures are all durably finished with plated alloy steel construction
• The quick-connect buckle features visual indicators showing a positive connection
• Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit


Material Specifications

Webbing: Kevlar®; 5,000 lb min. static strength
D-ring: Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength

Performance Specifications

• Fall Arrest
• Static Strength: 3,600 lb min.

• ANSI User Capacity: 130 to 310 lb max.

• OSHA User Capacity: 130 to 425 lb max.

Downloads
Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Harness Sizing Chart

Compliant With:

• CSA Z259.10-2018
• ANSI Z359.11-2021
• OSHA 1926.502 and 1910.66
