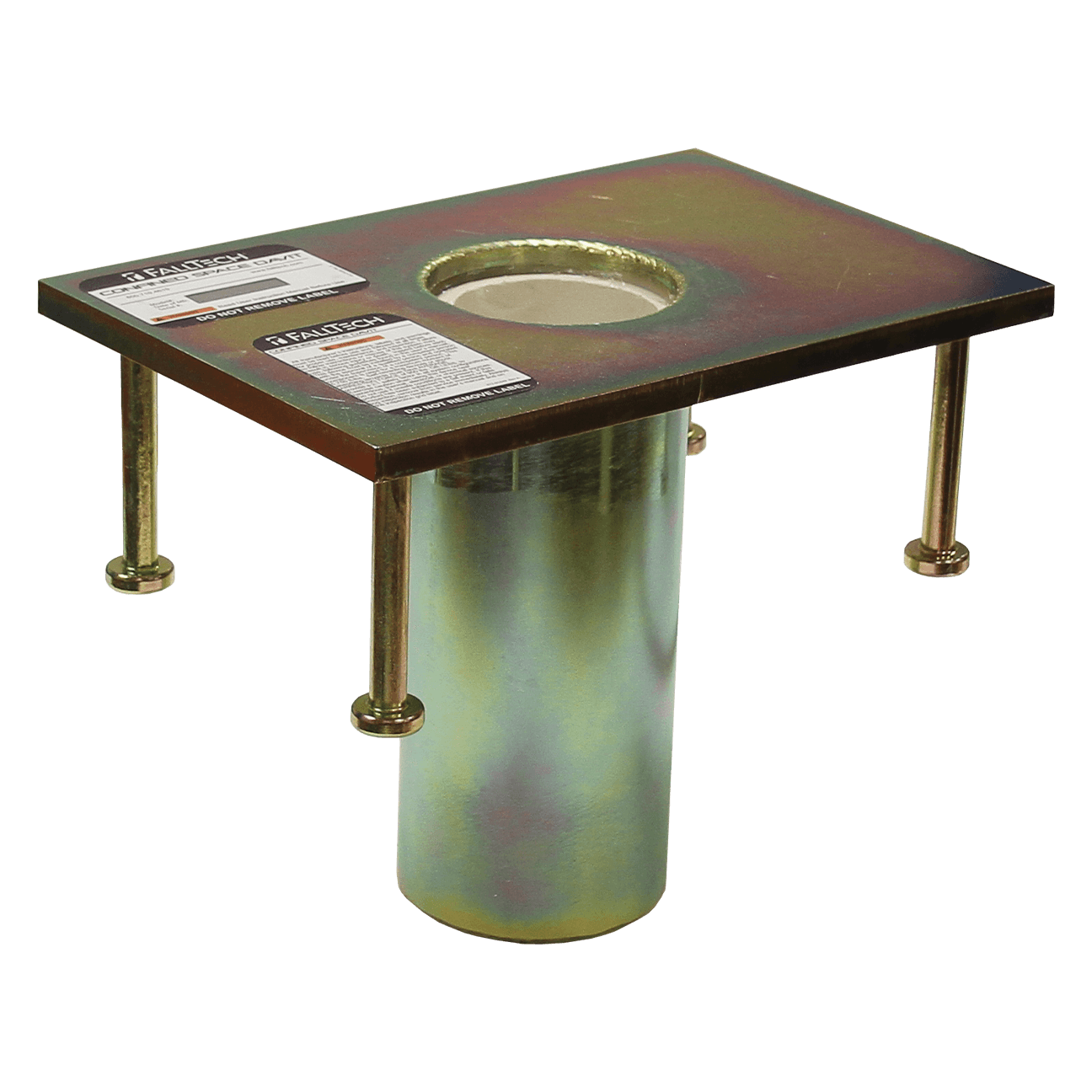

Flush-mount Plated Steel Cast-in Fixed Davit Base

Description

Flush-mount Plated Steel Cast-in Fixed Davit Base

Features

• Permanently installed davit base solution is ideally suited for recurrent access locations
• Cast-in design for new concrete construction installation.
• Rugged 8" x 12" plate with 4" support rods provide a long-lasting fixed base solution
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
• The flush floor profile is well-matched for high-traffic areas and helps reduce tripping hazards

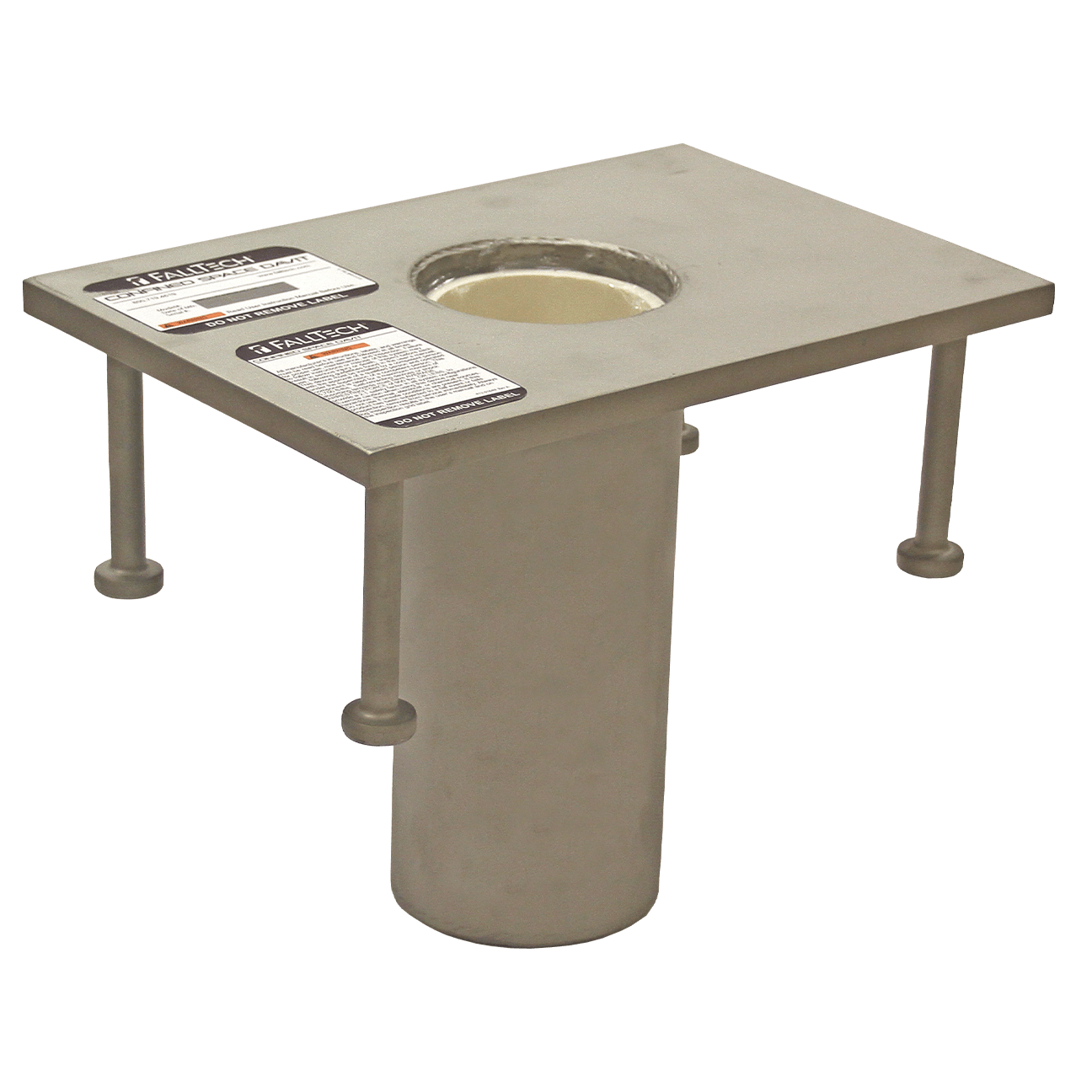

• Plated steel construction throughout; also available in stainless steel
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Plated steel or stainless steel construction
• Davit Base; Plated carbon steel or stainless steel
• Sleeve Insert; PVC pipe
• Rated Capacity; 620 lb at a minimum 4:1 design factor
• Mast Moment Proof Load; 6,167 ft. lb
• Mast Rotation; 360°
