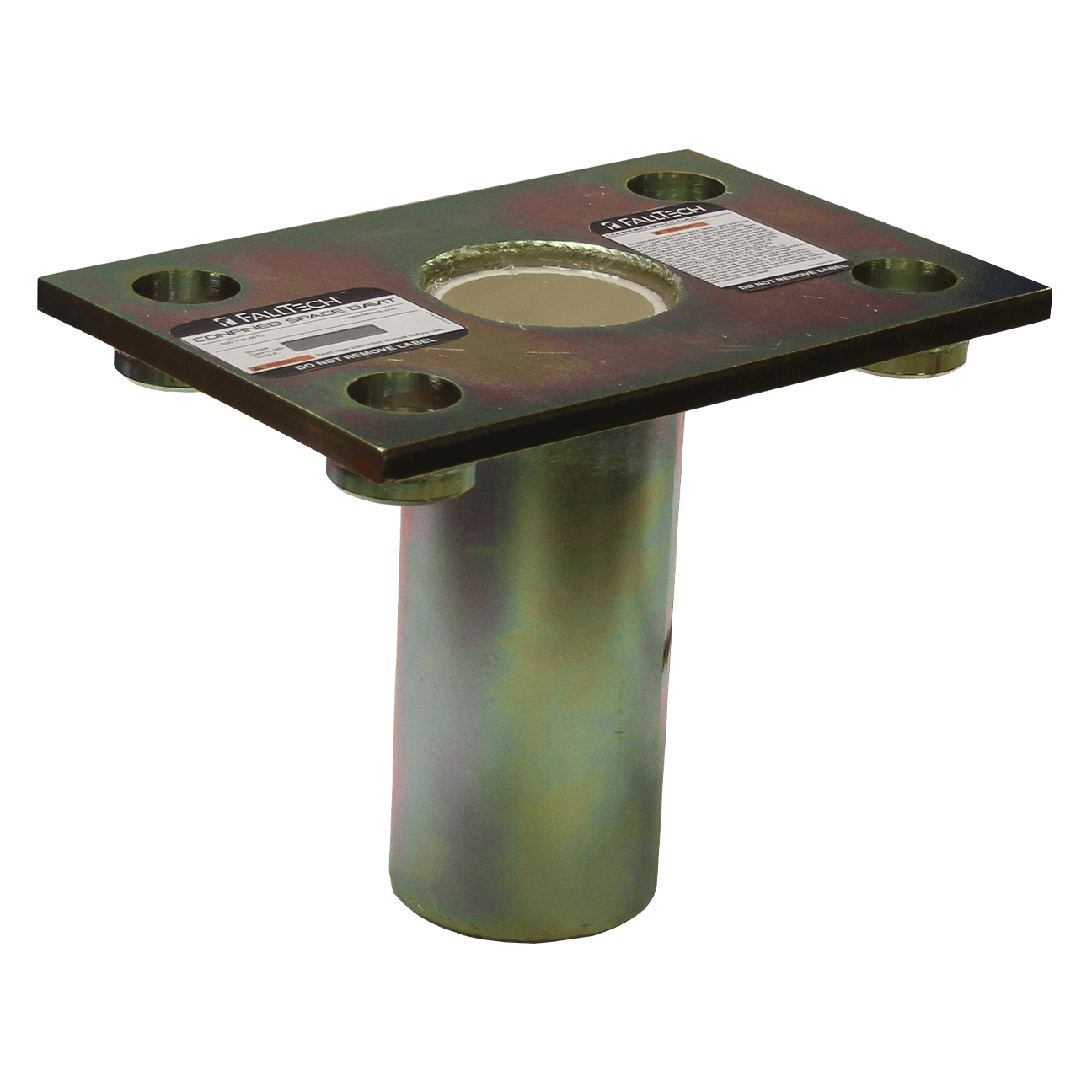

Flush-mount Plated Steel Bolt-on Fixed Davit Base

Description

Flush-mount Plated Steel Bolt-on Fixed Davit Base

Features

• Permanently installed davit base solution is ideally suited for recurrent access locations
• Bolt-on design for existing steel and concrete installation.
• A rugged 8" x 12" plate provides a long-lasting fixed base solution
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
• The flush floor profile is well-matched for high-traffic areas and helps reduce tripping hazards

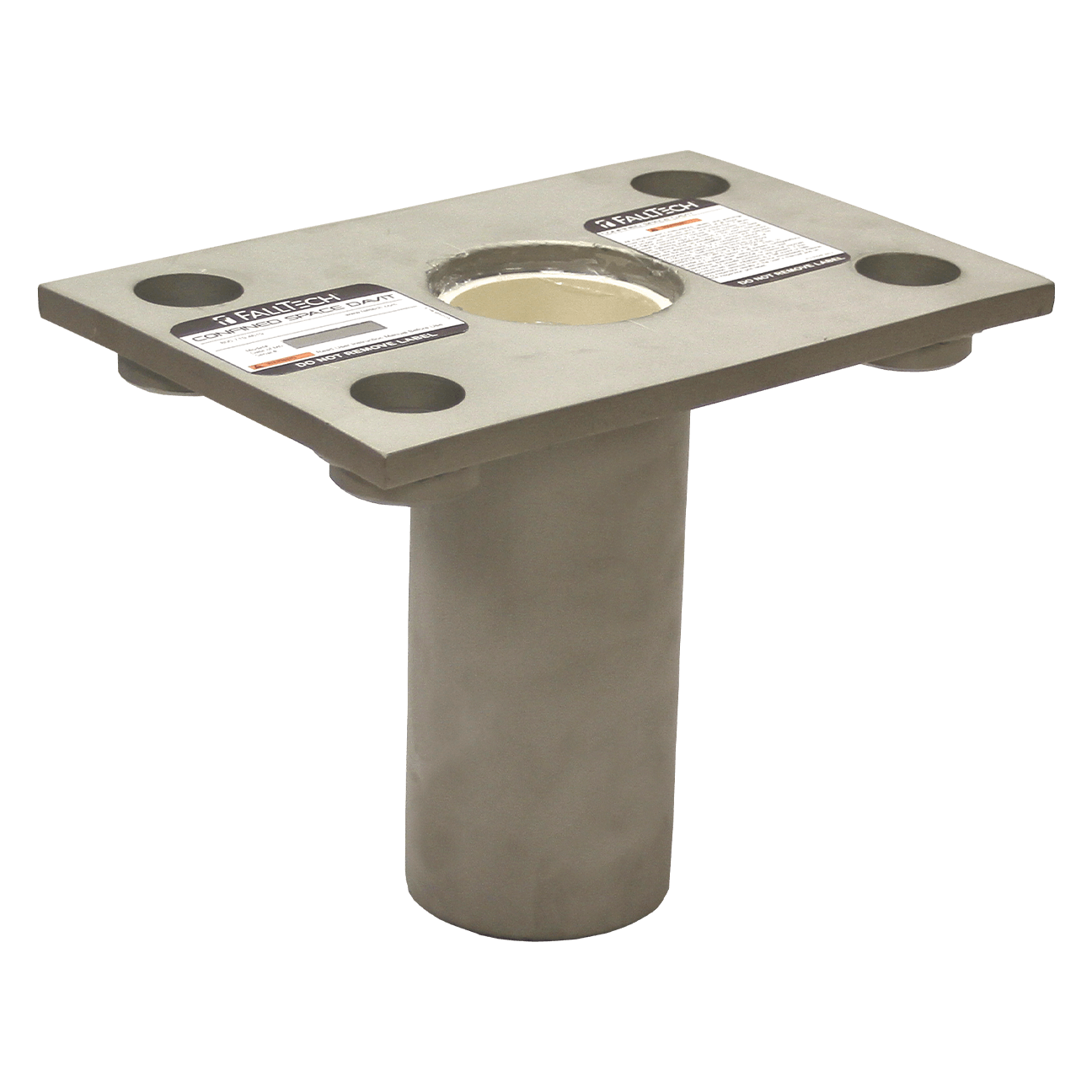

• Plated steel construction throughout; also available in stainless steel
• User-supplied fasteners required for installation
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Plated steel or stainless construction
• Davit Base; Plated carbon steel or stainless steel
• Sleeve Insert; PVC pipe
• Rated Capacity; 620 lb at a minimum 4:1 design factor
• Mast Moment Proof Load; 6,167 ft. lb
• Mast Rotation; 360°
