Barrel Mount Davit Base

Description

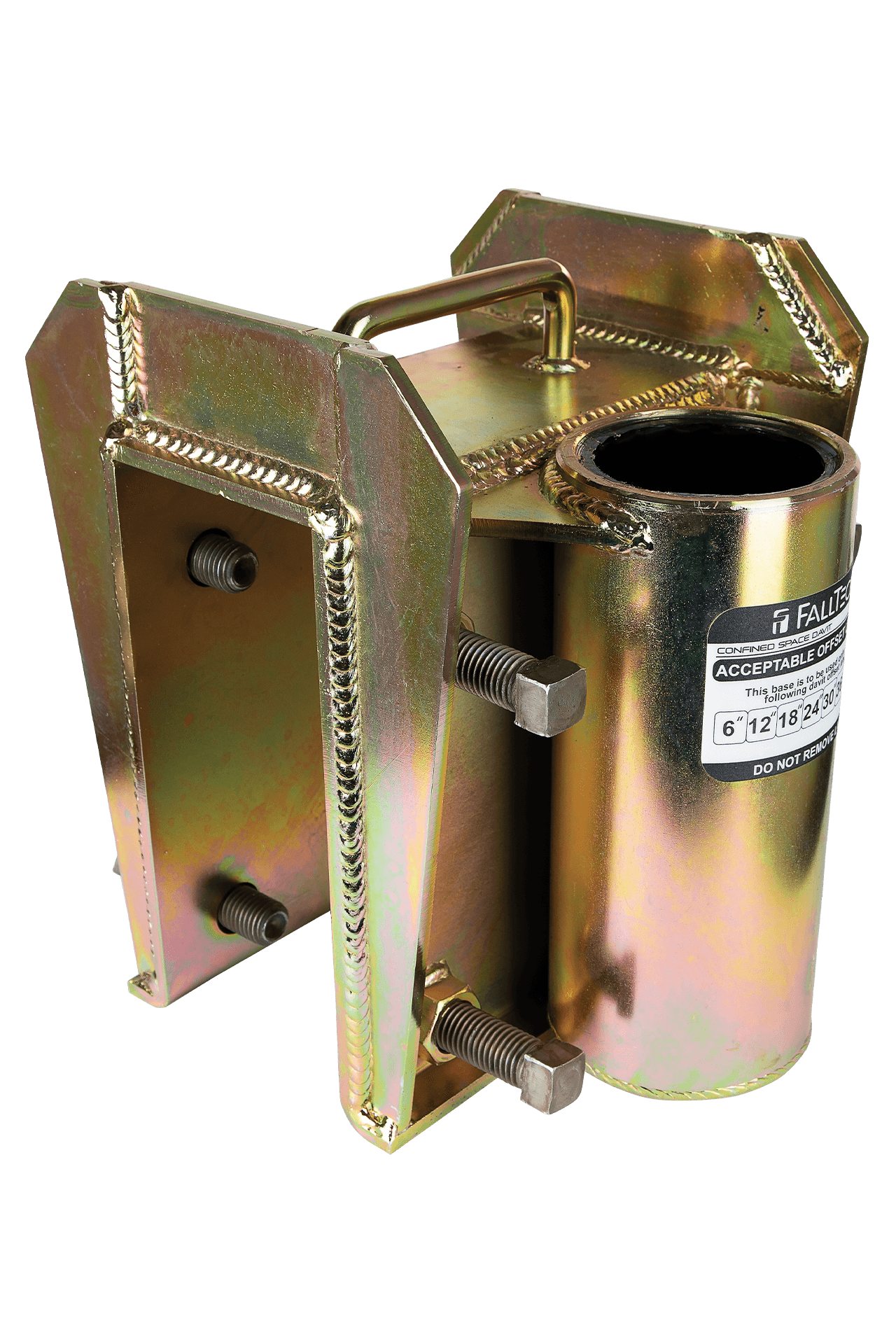

Barrel Mount Davit Base

Features

• Features bolt-on installation to existing edges, walls and other properly rated structures up to 3-1/2" thick
• Designed for use with FallTech® 29" and 44" Offset Davit Arms and one of four lower mast extensions.
• Plated steel construction with PVC sleeve insert and integral carry handle for portability
• Includes 8 pcs 3/4" x 3" square head set screws for securing to structure
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Bolt-on installation
• Davit Base; Plated carbon steel
• Sleeve Insert; PVC pipe
• Rescue Static Strength; 6,750 lb min.
• Entry/Egress Static Strength; 1,800 lb min.
• Rescue User Capacity; 2 users, 310 lb max. for each person
• Entry/Egress Capacity; 1 user, 310 lb max.
