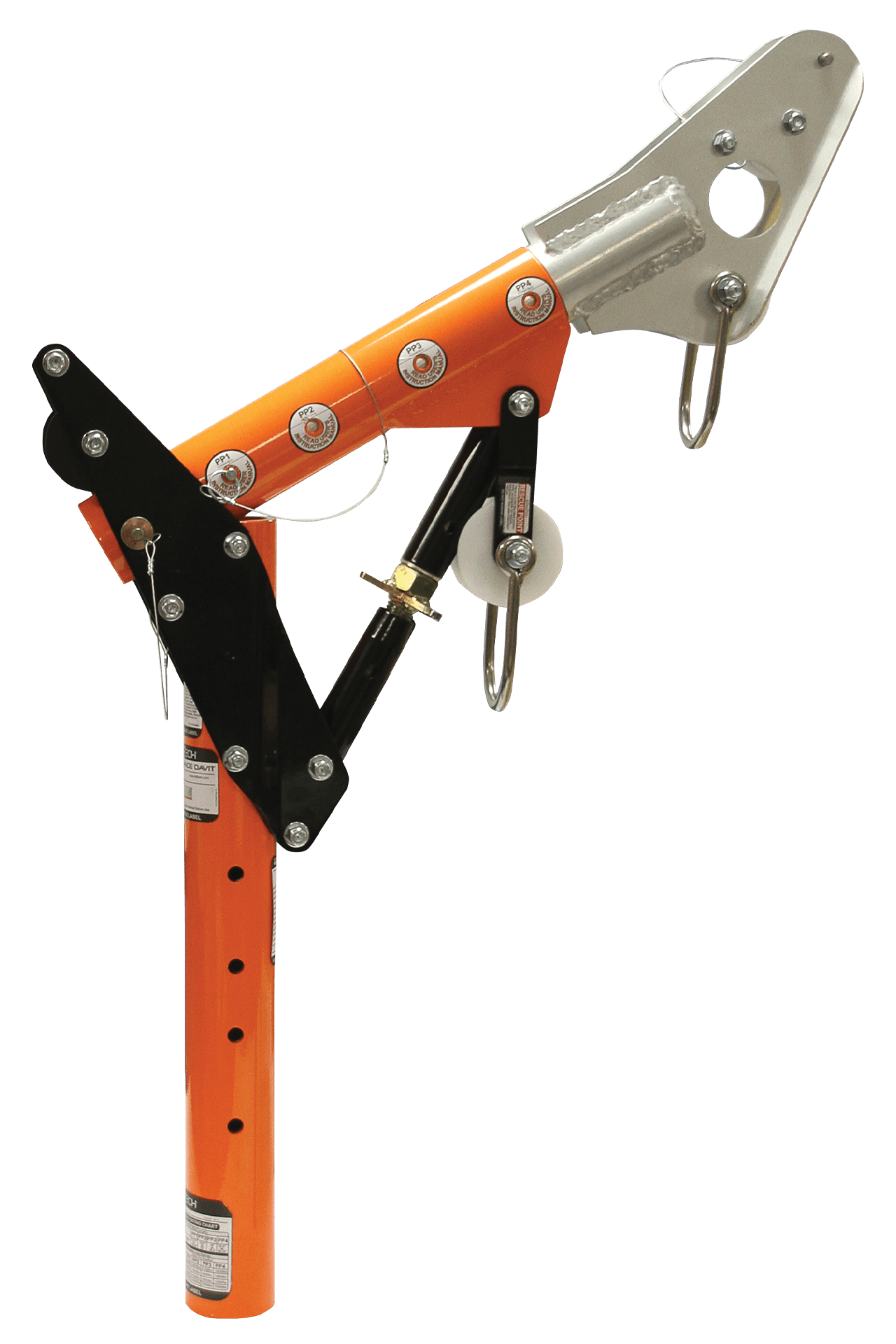

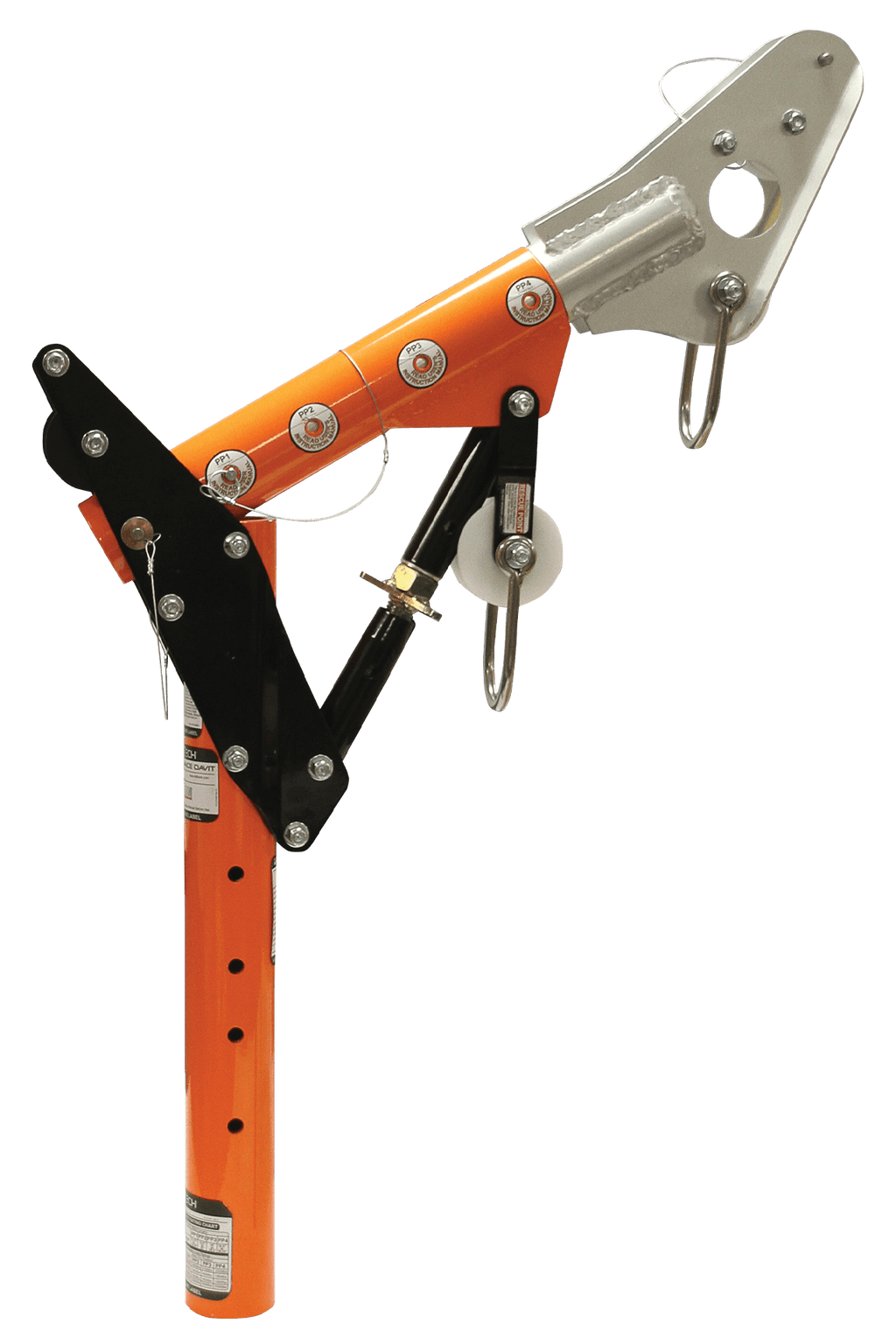

Offset Davit Arm, 12" to 29" with Device Receiver Bracket

Description

Offset Davit Arm, 12" to 29" with Device Receiver Bracket

Features

• Telescoping adjustability from 12" to 29" offset reach keeps lifelines correctly centred over access locations
• Features primary and secondary pulleys for use with multiple devices.
• Includes integral secondary 5,000 lb anchor point for Fall Arrest applications
• Device Receiver Bracket included for attaching properly rated FallTech devices
• Modular design allows custom assembly with lower masts and functional bases to suit your site-specific needs
• Lightweight powder-coated aluminum combined with alloy steel for long life and durability
• Meets OSHA 1926.502 and 1910.66 regulations only when used with davit bases and mast extensions

Product Specifications

• 12" to 29" offset reach
• Includes device receiver bracket
• Offset Davit Arm; Powder coated 6061 aluminum and plated steel
• Rescue Static Strength; 5,000 lb min.
• Entry/Egress Static Strength; 1,800 lb min.
• Rescue User Capacity; 2 users, 310 lb max. for each person
• Entry/Egress Capacity; 1 user, 310 lb max.
