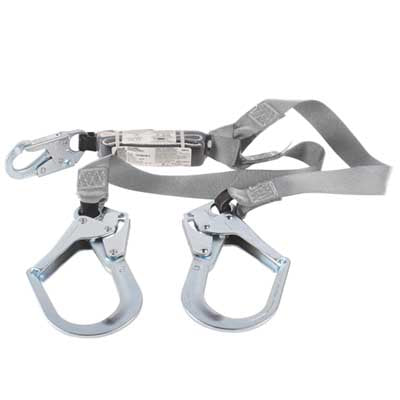

Dyna-ONE™ Polyester Web Fixed Y-Lanyard with Energy Absorber, Small Snap Hook and Two Large Snap Hook - 1.75" - FP746266

This lanyard is specifically designed for fall arrest purposes for workers weighing between 45kg (100lbs) to 160kg (352lbs). With many hardware options and webbing types, it will provide you with the best option to best suit your specific application. It is very important for the user to calculate the fall clearance requirement when using a lanyard with an energy absorber.

FEATURES

• Polyester Web Y-Lanyard 1.75 in (45 mm) wide with "DYNA-ONE" Energy Absorber
• 1 double locking small snap at one end plus 2 large double locking snap hooks at the other end
• Fixed lengths of 4', 5', 6'
• Weight capacity between 45kg (100lbs) to 160kg (352lbs

Specifications

• SIZE 4’, 6’ long
• WEIGTH varies
• TYPE Energy Absorber Lanyard
• MATERIALS High Strength Steel Snaps; 1 3/4”
• Width Polyester Webbings
• CSA CLASS CSA Class B
• MAX WORK LOAD CSA certified 132-352 lbs (60-160kg)
• DSI certified 100-352 lbs (45-160kg)
• STANDARDS CSA Z259.11-17, ANSI Z359.1-07
• HARDWARE MIN TENSILE 6000 lbs (27 kN)
• HARDWARE Certified to CSA Z259.12-16; ANSI/ASS Z359.12-19
• MAX. ARREST FORCE 900lbs
• COLOR Golden or Silver Snaps; Black 1-3/4” webbing
• MADE IN Canada
• DEPLOYMENT DISTANCE 3.9 ft

Spec Sheet
