Product Details
Technical Specs
- Item

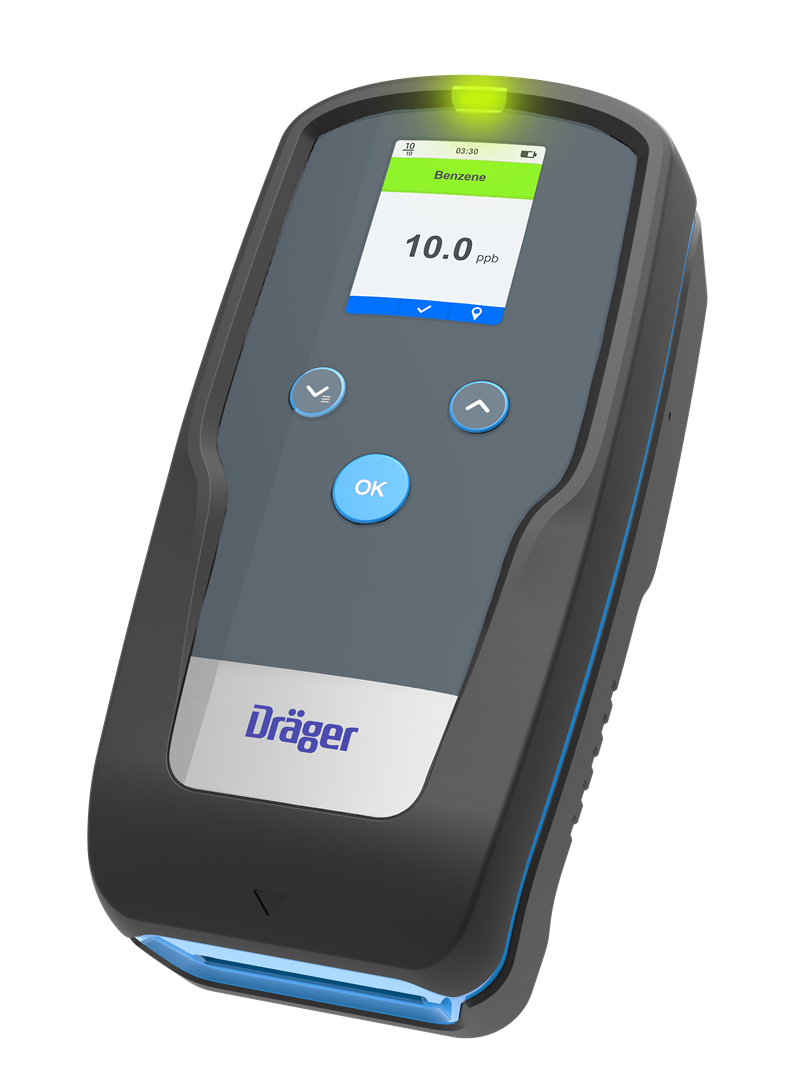

- MicroTube Gas Analyzer
- Brand
- Dräger
- Mfr. Model #
- 8610800
- Series
- X-act 7000
- Detection Method
- Opto-electronic reading of colorimetric MicroTubes (mass-flow based)
- Display
- 2.4 in colour, 240 x 320 px, 160° viewing angle
- Power Supply
- Five AA alkaline cells (1.5 V each)
- Battery Life
- Approx. 600 min of testing
- Data Logging
- Internal logger (result, location, time); Dräger CC Vision software
- Interface
- USB (Mini connector), 2 m cable included
- Operating Temperature
- 0 to +50 °C (+32 to +122 °F)
- Storage Temperature
- -20 to +55 °C (analyzer); +4 to +25 °C (MicroTubes)
- Humidity
- 0–95 % RH, non-condensing
- Air Pressure
- 700–1,300 hPa
- Ingress Protection
- IP54
- Dimensions
- 195 x 85 x 70 mm (7.7 x 3.3 x 2.8 in)
- Hazardous Location Approvals
- ATEX/IECEx II 1G Ex IIC T4 Ga; cCSAus Class I, Zone 0, AEx ia IIC T4 Ga
