ADA Pathcade Barricade System

Multi-Purpose Barricade System

• Crowd Control

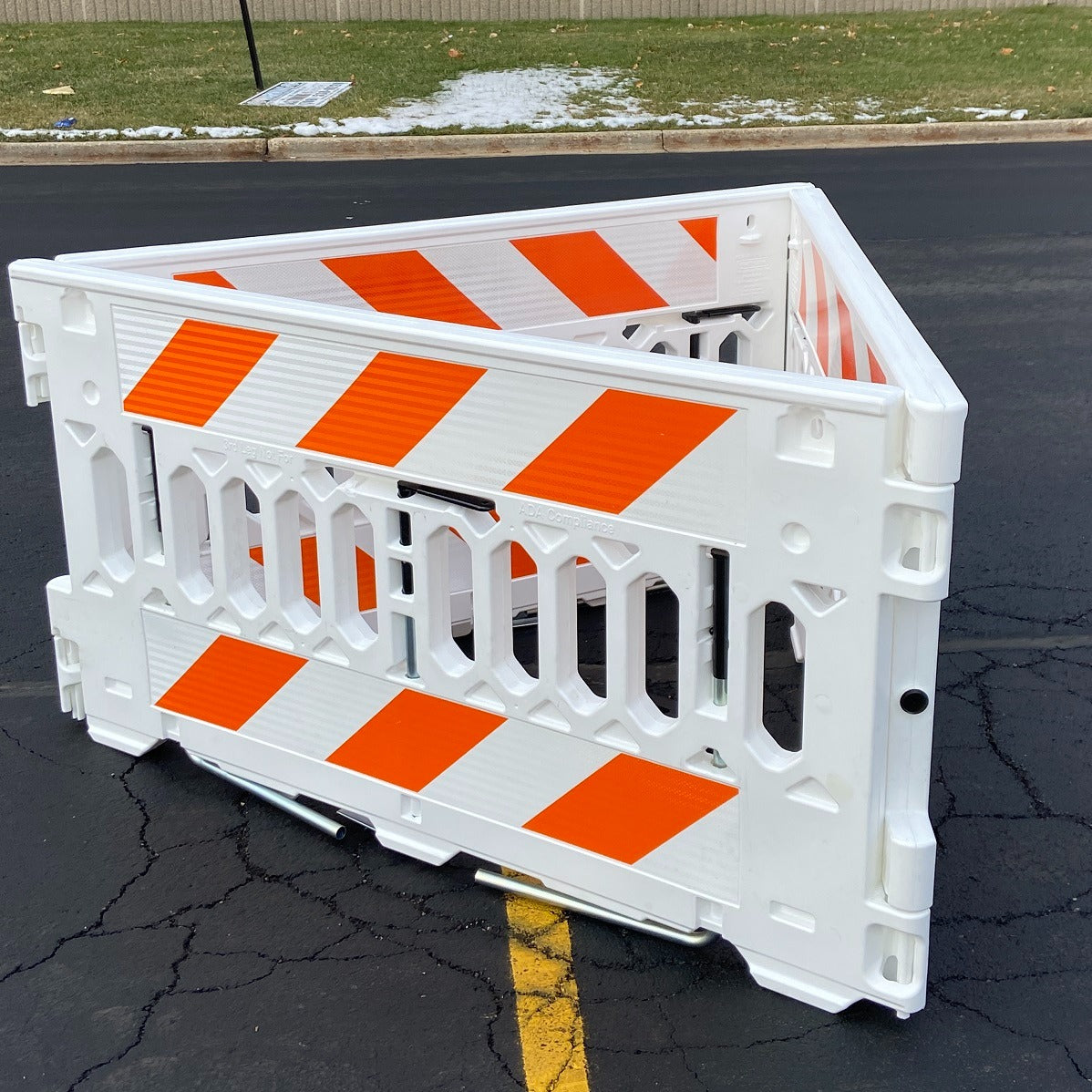

• Manhole Guard
• ADA Pedestrian Pathway System
• Longitudinal Channelizing Device

Specifications

• Multi-functional barricade system
• Meets ADA requirements
• Continuously detectable edge at both top and bottom of panels
• 182.88cm L x  96.52cm H (72″L x 38″H)
• Exclusive tri-pod leg system
  • No sandbags needed when using all 91.44cm (36″)
  • Anti-trip foot on one side
  • Two larger feet on opposite side
  • Use only larger feet with sandbags for ADA compliance
• Easy handle turn deploys barricade feet
• Soft grip handle system for quick turn to move feet out or back in
• Stack 20% more
  • Nesting system allows for 19 units to stack on a pallet
  • Lowers transportation costs
  • Stacking lugs keep units from shifting
• Panels pivot 120 degrees to shape to any layout
• Made in the USA
• MASH Accepted, Meets MUTCD Standards
